The ACOPower 25W 12V Solar Panel Charging Kit w/ 5A SAE Charge Controller from Nomadic Supply Company® is designed specifically for customers new to solar. This 25w solar kit is great for off-grid applications, such as RVs, trailers, boats and sheds – providing many benefits, including, but not limited to, quiet power production and grid independence. This off-grid solar kit comes with the tools necessary for a new system.
ACOPower 25W 12V Polycrystalline Solar Panel Charging Kit w/ 5A SAE Charge Controller Features:
- Solar Kit : Used High Modules Conversion Efficiency 25W Polycrystalline Solar Panel. Provides Up to 25W Designed specifically for customers new to solar. Easy and convenient to install with pre-drilled holes on panels
- UpgradedCharge Controller& Expandable : It has been Upgraded to Positive Grounding Controller New 5A PWM Charge Controller. The 5A charge controller with USB output for 12V battery charge. You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off Grid Applications and Safety.
- Green Solar System: Best free & Clean Power Resource Used in Various Off-Grid Applications that Include 12 arrays, WaterPumping Systems, Signaling Systems and other Off-Grid
- Application: Basic Component for Off-Grid Solar Panel 12V/24V/36V/48V System, Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, Cabins, Camper Vans, Cars, Green House Solar Systems. Withstand High Wind (2400Pa) and Snow Loads (5400Pa); Lightweight Anodized Aluminum Frame and Reinforced Safety and anti-Reflection Coated Glass 3.2mm Thick and Waterproof IP-65 Rated Junction Box which Allows The Panel Lasts for a Long Time.
- Warranty: 5 years material and workmanship warranty and 25 years power output warranty; Accessories, 1 year material & workmanship warranty.

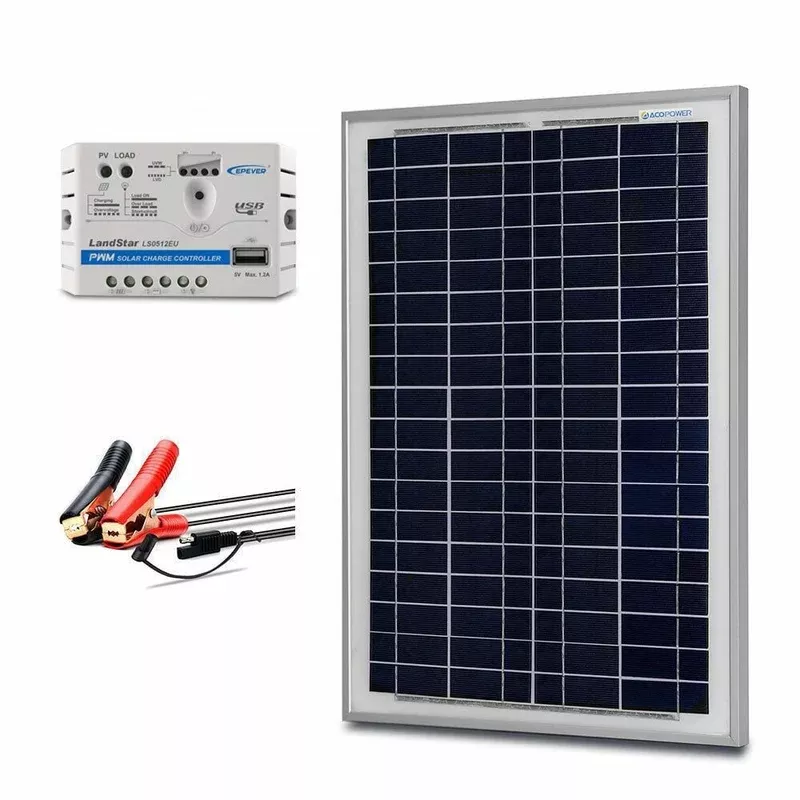

ACOPower 25W 12V Polycrystalline Solar Panel Charging Kit w/ 5A SAE Charge Controller Includes:
- 1 x LS0512EU Solar Charging Controller with SAE adapter and Alligator Clips
- 1 x HY025-12P Solar Panel
- 2 x User Manual
ACOPower 25W 12V Solar Panel Charging Kit w/ 5A SAE Charge Controller Applications:
- Courtyard lighting.
- Small household lighting system.
- Street lighting.
- Portable solar power.
- Solar Pump
- All small power electrical devices & small PV system.
ACOPower 25W 12V Polycrystalline Solar Panel Charging Kit w/ 5A SAE Charge Controller Specifications:
| SPECIFICATION | |
| MaximumPower at STC (Pmax): 25W | Open-Circuit Voltage (Voc): 22V |
| Maximum Operating Voltage (Vmp): 17.5V | Short-Circuit Current (Isc): 1.54A |
| Maximum Operating Current (Imp): 1.43A | Operating Temperature: -40ºC to 85ºC |
| Dimension: 510x360x20mm / 20.1×14.2×0.8 in | Weight: 3.2kg / 7 lbs |
| 5A PWM CHARGE CONTROLLER | |
| Nominal system voltage: 12V | Rated charge/discharge current: 5A |
| Max. PV open circuit voltage: 30V | Battery input voltage range: 8～16V |
| Battery type: Sealed / Gel / Flooded | Grounding: Common positive |
| Working temperature: -35℃～+55℃ | USB output: 5V/1.2A |
| Terminals: 14AWG/2.5mm | Enclosure: IP20 |
| Dimensions: 109.2×65.5×20.8mm | Weight: 0.21 lbs /0.095kg |
| WARRANTY INFORMATION |
| Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty. |
| Accessories: 1-year material warranty |
ACOPower 25W 12V Polycrystalline Solar Panel Charging Kit w/ 5A SAE Charge Controller Documents:
ACOPower 25W Solar Panel User GuideACOPower 25W 12V Solar Panel Charging Kit w/ 5A SAE Charge Controller Owner’s Manual
