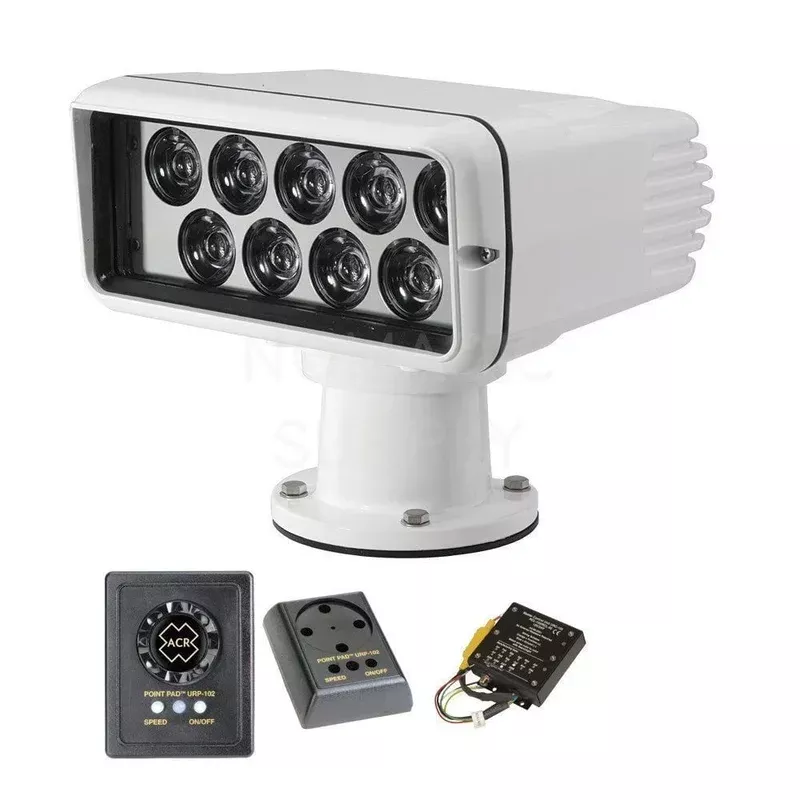

The ACR RCL-100 LED Searchlight Wired Kit w/Master Controller & Wired Point Pad Controller (1951)fromNomadic Supply Company®continues to utilize the same rugged design as the original RCL-100, but incorporates an efficient 9 LED array that produces over 200,000 candela of light.Other features include a remote control operation that allows users to rotate the light 360° continuously at either a fast or slow speed without the hassle of a hard stop. With a 7° beam angle, the light also provides elevation angles at 9° up and 17° down to make lighting draw bridges, buoys and docks a breeze.Not all searchlights are created equal. The ACR RCL-100 LED 12/24V Wired Search Light White (1951) die cast aluminum case is triple-primed and painted with UV stabilizer to withstand years of exposure in harsh marine environment. The light’s internal elevation mechanisms are fully enclosed and provide precise pitch control of the beam while staying protected.The ACR RCL-100 LED 12/24V Wired Search Light White (1951) LED bulbs are efficiently designed to provide over 40,000 operating hours. The light also includes our Exclusive XRCiZ feature that’s pre-programmed and allows for the light to independently rotate every 30 days from activation to insure all bearing surfaces are free of corrosion and all electrical contacts functional.The ACR RCL-100 LED 12/24V Wired Search Light White (1951) is completely weatherproof and is available with a weatherproof remote control and operates with 12 or 24 DC power.
ACR RCL-100 LED Searchlight Wired Kit w/Master Controller & Wired Point Pad Controller (1951) Specifications:
- Size: 8 x 9 x 8″ (20.3 x 22.9 x 20.3 cm)
- Weight: 7lbs (3.17 kg)
- Material: Aluminum Alloy Die Casting
- Color: White
- Operation: Wired Remote controlled Point Pad
- Beam Angle: 7°
- Elevation Angle: 9° up, 17° down
- Rotation: 360° continuous
- Rotation Speed: Fast 31° per second, slow 20° per second
- Elevation Speed: 2.8° per second
- Lamp: High intensity LED (40,000 hour life)
- Power Requirements: 12 or 24 V DC
- Peak Beam: Candle Power 200,000
- Wiring harness of 15 feet (4.57 m)
- Two speed motor
| ACR Product Number | ACR 1951 (White) / ACR 1951.B (Black) |
| Size | 8 x 9 x 8” (20.3 x 22.9 x 20.3 cm) |
| Weight | 7.2 lbs (3.2 kg) |
| Material | 518 Die-cast aluminum |
| Color | White or Black |
| Operation | Remote-controlled wired Point Pad |
| Beam Angle | 7° vertical, 7° horizontal |
| Elevation Angle | 9° up, 17° down |
| Rotation | 360° continuous |
| Rotation Speed | Fast 31° per second, slow 20° per second |
| Elevation Speed | 2.8° per second |
| Lamp | 9 LED Array (220,000 cd) |
| Accessories | Master Controller (URC-103) and Point Pad Installation Kit (9283.4), Master Controller Kit (1949) |
| Footprint Diameter (without pedestal) | 4.75” (120.7 mm) |
