Airmar DST820 Bronze Thru Hull – NMEA 2000 – 235kHz [DST820-BV-N2]

DST820 Bronze Thru Hull – NMEA 2000 – 235kHzThe DST820 Smart Multisensor is the next evolution of Airmar’s industry-leading technology, replacing the DST810 and introducing PSTI compliance for enhanced onboard network security.With its secure QR-code setup, connecting your DST820 has never been easier—or safer. Simply scan the QR code and enter a one-time security password on your mobile device to protect your sensor on the network.Featuring Airmar’s high-performance Gen2 paddlewheel, the DST820 delivers unmatched speed-through-water accuracy— providing precise start-up data below 0.3 knots, linear accuracy from 0.6 knots, and stable, reliable readings all the way up to 45 knots.Whether you’re a day sailor, weekend cruiser, or tactical racer, accurate speed-through-water (STW) data helps you fine-tune sail trim and rig balance for maximum performance. For racers, precise STW readings enable accurate velocity made good (VMG) and target speed calculations, ensuring every tactical decision is>

• The DST820 is fully compliant with UK PSTI security standards, ensuring that the connection between DST820 and a mobile device is secure.
• The industry’s best speed paddlewheel – DST820 features the Gen2 paddlewheel for industry-leading speed performance from 0.3 knots to 45 knots.
• Smoother Speed – 5.7 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making when every second counts.
• Integrated Attitude Sensor – For heel and trim, and used in advanced speed calibration.

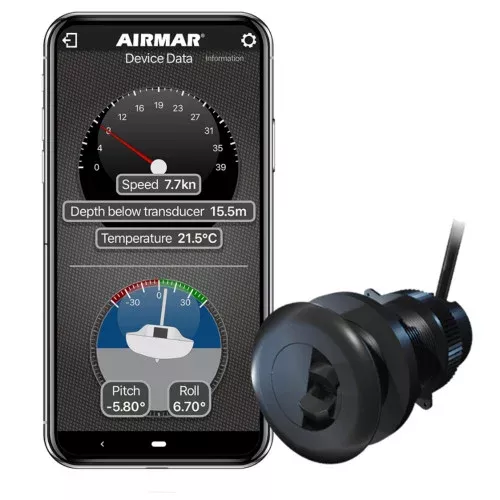

DST820 secure Bluetooth® connectivity to Airmar’s CAST app provides the ability to:

• Calibrate the DST820 in a simple, intuitive way from your mobile device.
• Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range.
• Advanced speed calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software.

Specifications:

• Functions: Depth, Speed, Temperature, Attitude
• Mounting Style: Low Profile Thru-Hull
• Power Rating: 80 W
• Protocol Output: NMEA 2000®
• Housing: Bronze
• Max Deadrise Angle: 22°
• Hull Material: Fiberglass or metal
• Hole Size: 51 mm (2″)
• Retractable housing: Yes
• Acoustic Window: Urethane
• Attitude Sensor: Yes
• Bluetooth Capable: YES Bluetooth BLE
• Cable-Length: 6 m (20′) NMEA 2000® cable
• Certifications: CE
• Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
• Conventional Beam: 10°x44°
• Data Rate: Depth: 1X/second, Speed: 5X/second, Heel/Trim: 10X/second
• Max Deadrise: Up to 22°
• Max Depth: 0.5 m (1.6′) to 100 m (330′)
• Minimum Depth: 0.5 m (1.6′)
• NMEA 2000 LEN: 2
• Pulses: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
• Retrofits: Fits most Airmar 2″ housings
• Speed Range: Up to 45 knots
• Temperature Accuracy: ±0.5°C (±1.8°F)
• Tilted Element: No
• Usable Shaft Length: 121 mm (4.75″)
• Voltage: 9 to 16 VDC
• Water Temperature: -10° to 40°C (14° to 104°F)
