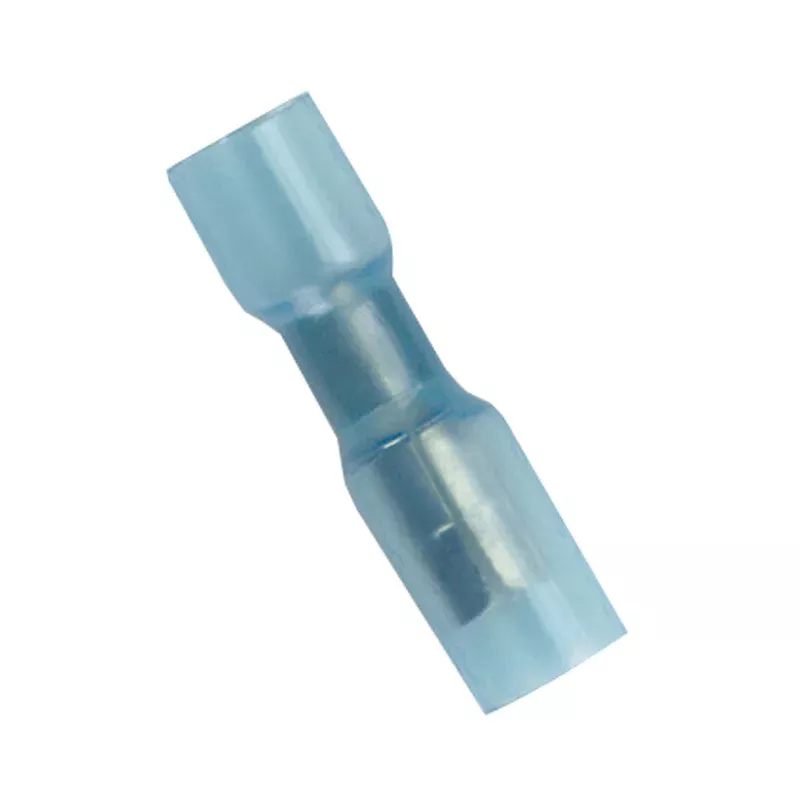

Ancor 16-14 Female Heatshrink Snap Plug – 100-Pack — Product
Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.
Ancor 319899 Attributes
- Type:Heat Shrink Female Snap Plugs
- Gauge Wire:16-14 Gauge
- Color:Blue
- Material:Tinned Copper Connector/ Heat Shrink Insulation
- Quantity:Pack Of 100
Ancor 319899 Features & Benefits
- Tinned For Corrosion Resistance
- Pure Copper For Maximum Current Flow
- Brazed Seam For Maximum Strength
- UL Listed And CSA Recognized
- No Supplier Warranty
Ancor 319899 Technical Bulletins
- ANC_NPA_001.pdf
- TCHDAT_CEAncorHeatShrinkTerminals.pdf
16-14 Female Heatshrink Snap Plug – 100-Pack
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio – shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire Range: 16-14/.197
- Size: 3-5mm/5mm
- Gender: Female
- Qty/Pkg: 100WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Cross-linked polyolefin pipe is much stronger than PVC pipe and will not burn like PVC. The heat-activated adhesive lining can be hermetically sealed to salt water, oil, acid,…
SKU: NVN-42099
MPN: 319899
UPC: 091887807714
