Ancor Adhesive Lined Heat Shrink Tubing (ALT) – 1/4″ x 6″ – 10-Pack – Black — Product

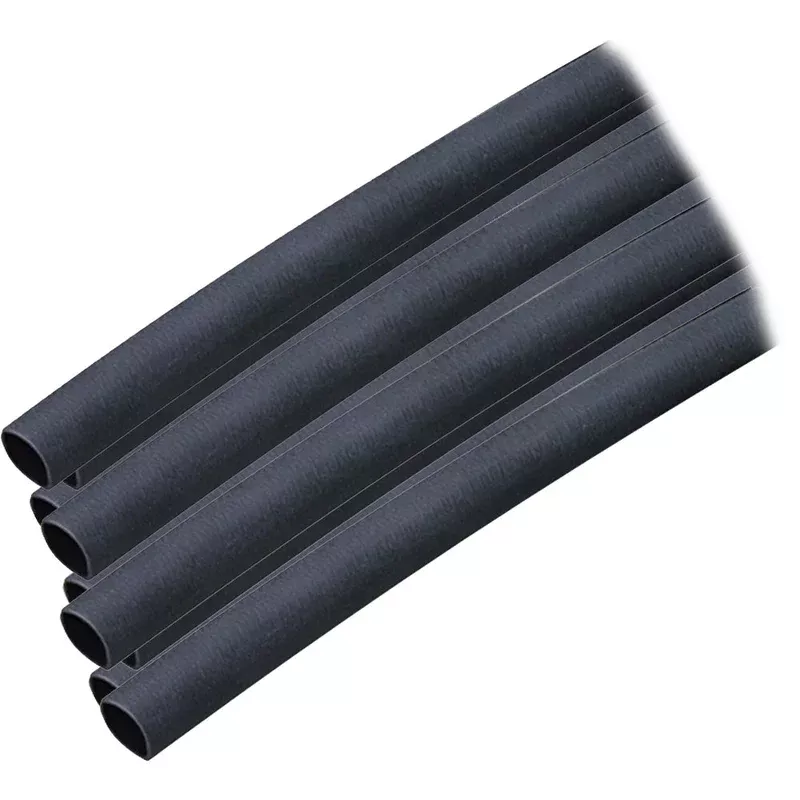

Adhesive Lined Heat Shrink Tubing (ALT) – 1/4″ x 6″ – 10-Pack – Black
Package of 10 Black 6″(15.2cm) long sections with a 1/4″(6.4mm) diameter that shrinks to 5/64″(2mm)
Wire Range: 16-10 AWG
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and
will not burn like PVC - Heat activated adhesive lining provides impervious seal to salt water,
oil, acids, and sunlight as well as providing strain relief - Highest shrink ratio – shrinks to 1/3 original size
- Shrinks at 257°F / 125°C
- Operating temperature range of -40°C to 110°C
- UL 224
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Ancor heat shrink tubing is firmly bonded to the insulating cover and terminals, creating a stronger connection than a separate mechanical connection.
SKU: NVN-60048
MPN: 303106
UPC: 091887302288
