Boat part number 7802000 is a new deck fill for carbon canister systems from Attwood, part number 99DFCCSB1. Commonly used on Lowe boats, part number 2063710, but may be used on other boats.
Features:
- Dual 1 psi overpressure relief safety valves built into the cap
- Automatic nozzle shutoff 4-18 gpm
- Hinged audible click cap meets EPA requirements
- ISO 10088 and CE compliant
- Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards
- Designed and tested to prevent water from entering the fuel system
- Compatible with Ethanol blended fuels

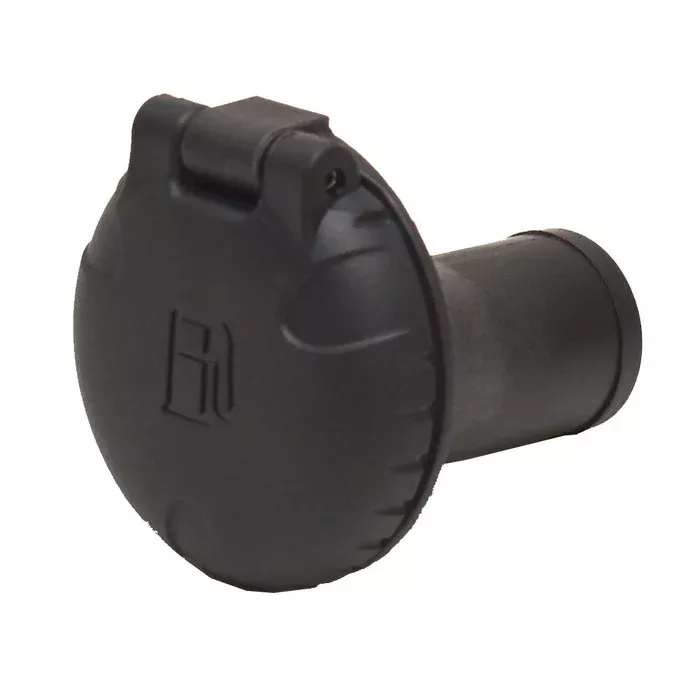

This deck fill is constructed out of black plastic and features a hinged latching cap. It measures approximately 3 3/8″ Dia. x 3 7/8″ L overall and requires an approximate 2″ Dia. cutout to install. Connects to a fill hose with a 1 1/2″ Dia. hose connection. Mounts with (4) 3/16″ Dia. holes set apart 1 3/4″ center to center.
Specifications:
- Boat Manufacturer: Lowe Boats
- Part Number: 2063710
- Part Manufacturer: Attwood
- Part Number: 99DFCCSB1
- Material: Plastic
- Color: Black
- Overall Dimensions: 3 3/8″ Dia. x 3 7/8″ L
- Cutout Dimensions: 2″ Dia.
- Mounts: (4) 3/16″ Dia. holes set apart 1 3/4″ CTC
- Connections: 1 1/2″ Dia. hose
