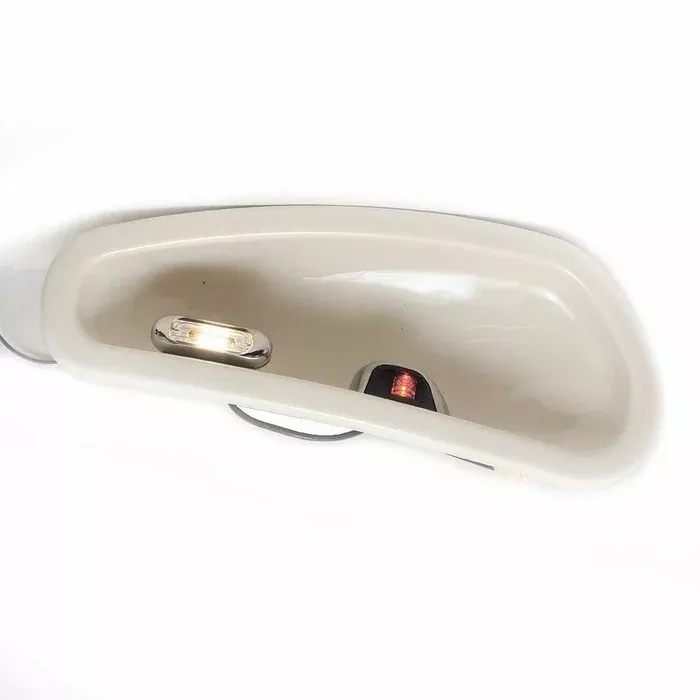

Boat part number 8800326 is a new port bow light panel for Avalon Pontoon Boats, part number 125190A .
This light panel is constructed out of cream marine grade plastic with a glossy finish. Features (1) red navigation light and (1) white light. It measures approximately 18 1/2″ W x 7 1/4″ H x 3 1/8″ D overall and requires a cutout of approximately 16 1/2″ W x 5 1/8″ H. There are (4) single spade female connections and (8) 1/8″ Dia. threaded mounting bolts.
Note: This is the port side panel ONLY.
Tag reads: 170BS LIGHT BUCKET, CREAM 30″ PORT ASSY ’12
Specifications:
- Boat Manufacturer: Avalon
- Model/Year: Unavailable
- Part Number: 125190A
- Part Manufacturer: Unavailable
- Part Number: 65158
- Material: Plastic
- Color: Cream (Off White)
- Finish: Glossy
- Electrical: 12V
- Cutout Dimensions: 16 1/2″ W x 5 1/8″ H
- Overall Dimensions: 18 1/2″ W x 7 1/4″ H x 3 1/8″ D
- Connections: (4) single spade female
- Mounts: (8) 1/8″ Dia. threaded mounting bolts
