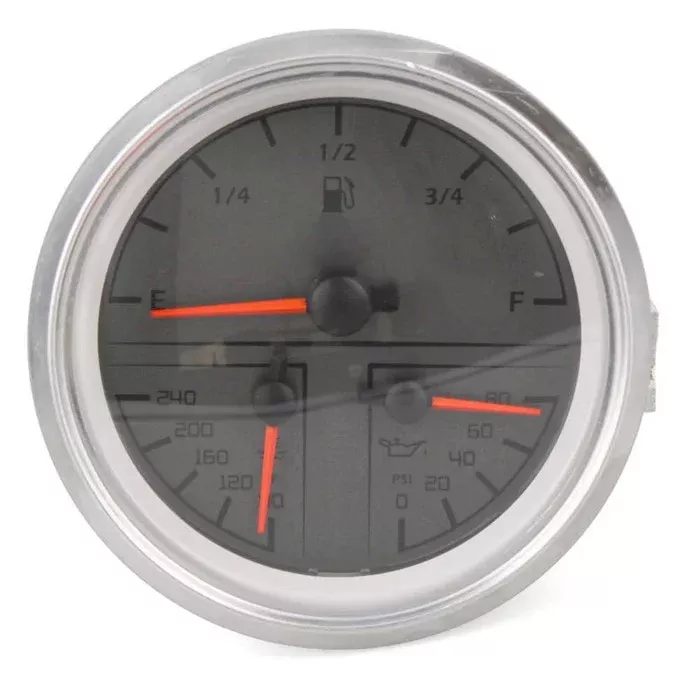

Boat part number 7910140 is a new NexSyslink series multi-function gauge from Beede, part number 961066 . Commonly used on MasterCraft Boats, part number 440-961066 , but may be used on other boats.
This multi-function gauge features a domed lens, silver colored bezel, dark gray face, bright orange needles, and black graphics. Features temperature, fuel, and oil pressure readings. It measures approximately 3 3/4″ Dia. across the face including bezel x 3 1/8″ D overall and requires a cutout of approximately 3 1/4″ Dia. It has (1) 6-pin male deutsch connection and mounts with (2) threaded mounting bolts.
Mounting bracket included.
Specifications:
- Boat Manufacturer: MasterCraft Boats
- Part Number: 440-961066
- Part Manufacturer: Beede
- Series: NexSyslink
- Part Number: 961066
- Color: Silver / Dark Gray
- Cutout Dimensions: 3 1/4″ Dia.
- Overall Dimensions: 3 3/4″ Dia. x 3 1/8″ D
- Connections: (1) 6-pin male deutsch
- Resistance: 240 – 33.5 Ohms
