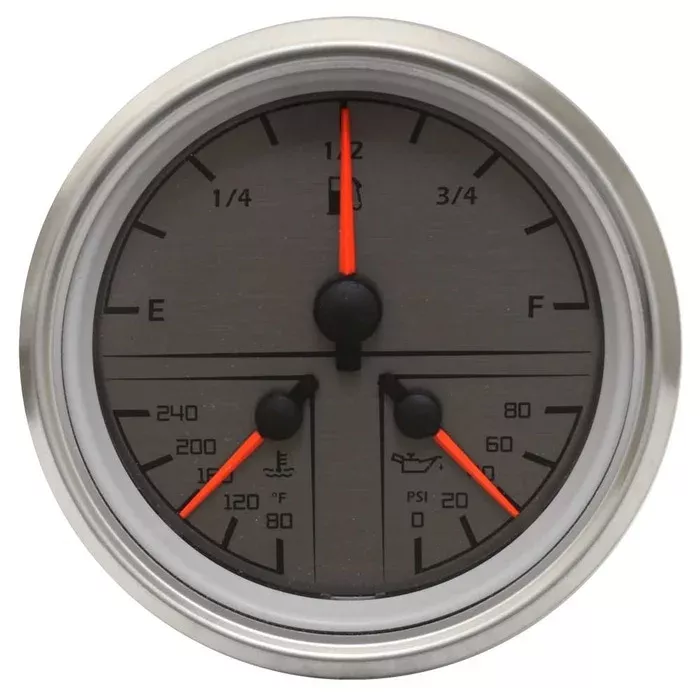

Boat part number 1083598 is a new NexSyslink multi-function fuel / temperature / oil pressure gauge from Beede, part number 960767 .
This multi-function gauge features flat lens, silver colored bezel and face, red needles, and black lettering / accents. Measures approximately 3 3/4″ Dia. (across the face) x 3 1/4″ D (including threaded studs) overall. Requires a 3 1/4″ Dia cutout and has (1) 6-pin male Deutsch, (1) 12-pin Deutsch female connections (connector not included).
Mounting bracket NOT included. Pigtail connector / harness not included.
Note: May contain minor scuffs and scratches due to handling and storage.
Specifications:
- Part Manufacturer: Beede
- Series: NexSyslink
- Part Number: 960767
- Color(s): Silver / Silver
- Overall Dimensions: 3 3/4″ Dia. x 3 1/4″ D
- Cutout: 3 1/4″ Dia.
- Connections: (1) 6-pin male Deutsch, (1) 12-pin female Deutsch
