Boat part number 7910898 is a new 80 MPH and trim multifunction gauge from Beede, part number 5532145 . Commonly used on Ranger Boats, part number 960906 . May be used on other boats.

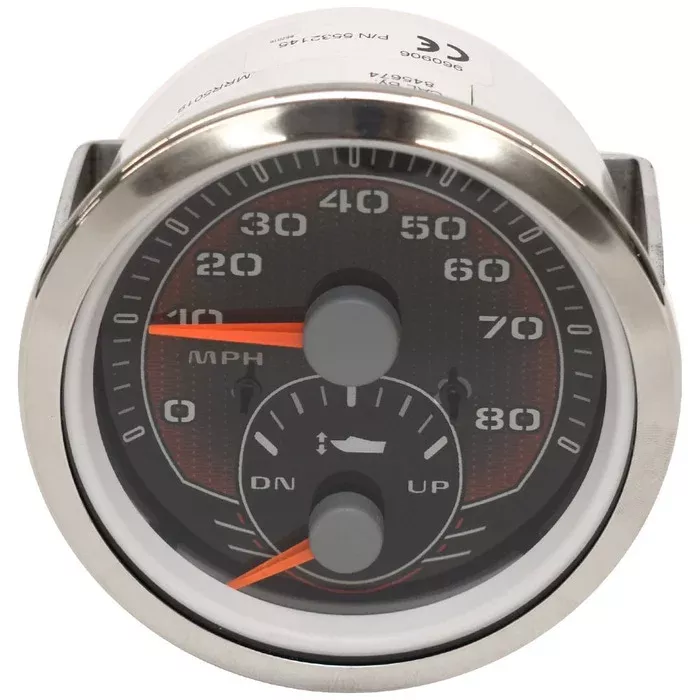

This red-booted, halogen illuminated gauge features a domed lens, black and red colored face, silver colored bezel, white lettering, numerals and accents, with orange needles.
Measures approximately 3 3/4″ Dia. across the face (including bezel) x 3 5/8″ D overall. Requires an approximate 3 1/4″ Dia. cutout. Hosts 8-pin Deutsch male and (2) threaded bolt connections.
Mounting bracket included.
The trim function is set up for Mercury, Volvo, and Yamaha engines 2001 and newer.
Specifications:
- Boat Manufacturer: Ranger
- Year / Model: Unavailable
- Part Number: 960906
- Part Manufacturer: Beede
- Part Number: 5532145
- Colors: Black / Red (Face) | Silver (Bezel)
- Overall Dimensions: 3 3/4″ Dia. x 3 5/8″ D
- Cutout: 3 1/4″ Dia.
- Connections: (1) 8-Pin Male Deutsch | (2) Threaded Bolt
- Set up for Mercury, Volvo, and Yamaha engines 2001 and newer.
