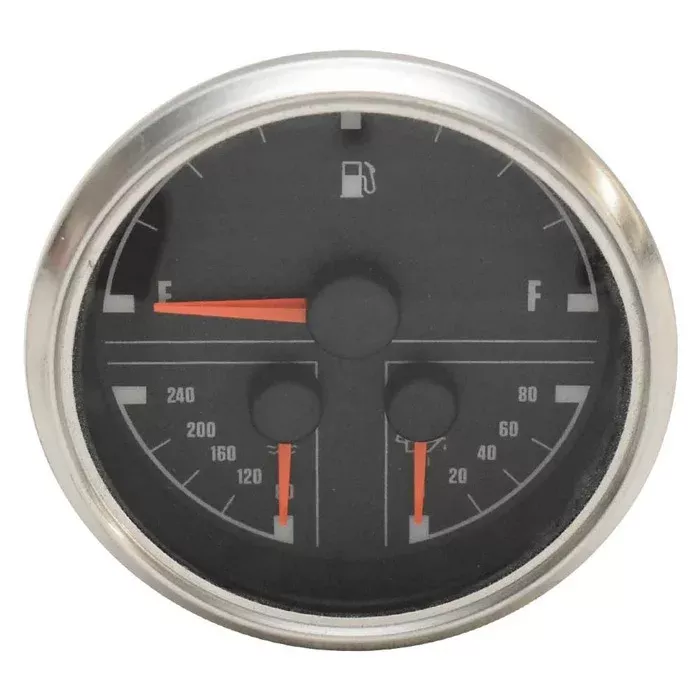

Boat part number 7910486 is a new NexSyslink multifunction gauge from Beede, part number 961132 .
This gauge has the following functions:
- Fuel Level
- 80-240 Degree F Water Temperature
- 80 PSI Oil Pressure
This electronically illuminated gauge features a domed lens, black colored face, silver colored bezel, white lettering, numerals and accents, with orange needles.
Measures approximately 3 3/4″ OD (including bezel) x 3 3/8″ D overall. Requires an approximate 3 3/8″ Dia. cutout. Hosts (1) 6-pin male Deutsch, (1) 15-pin female Deutsch and (2) threaded stud connections. Rated for a standard 33-240 Ohms.
Mounting bracket NOT included.
Specifications:
- Part Manufacturer: Beede
- Part Number: 961132
- Series: NexSyslink
- Colors: Black (Face) | Silver (Bezel)
- Overall Dimensions: 3 3/4″ OD x 3 3/8″ D
- Cutout: 3 3/8″ Dia.
- Connections: (1) 6-Pin Male Deutsch / (1) 15-Pin Female Deutsch / (2) Threaded Stud Connections
- Rating: 33-240 Ohms
