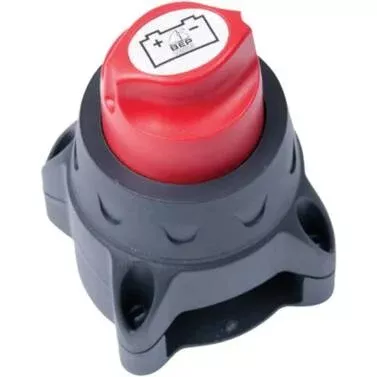

BEP Marine 700 275A continuous easy fit battery switch was created for installations where switches need to be recessed through varying thicknesses of panels. It achieves this through an easily removable threaded ring that allows for panel thicknesses up to 3/4″ (19 mm). This switch uses the same features as the 701 with the removable key 45 degrees past the off position, labeled handle, and a removable back cover covering exposed terminals to meet ABYC specifications. It can also be surface mounted offering a unique style compared to other switches available on the market.
Features
- Operation: On/Off
- Can easily be retro-fitted in place of most European post and lever type switches
- Molded in high temperature, fiber reinforced plastics
- Tin-plated copper studs and nuts
- Ignition-protected
Specifications
- 2.7″ x 2.7″ x 4.3″ (68x68x110mm)
- 275A continuous, 455A intermittent, 1250A cranking
- 2 3/8″ studs
- UL 1107 tested
