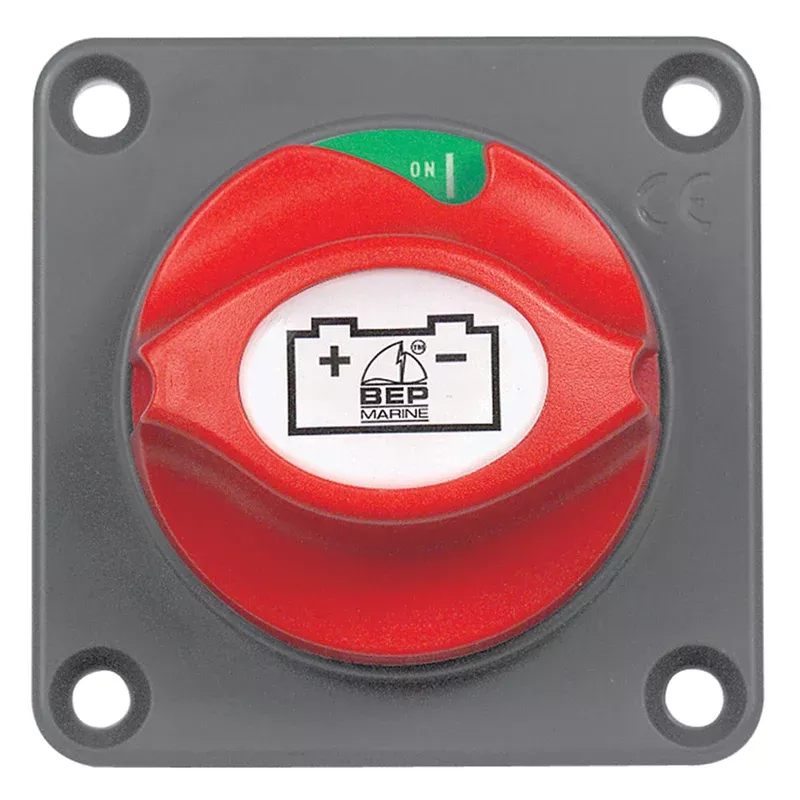

BEP Panel-Mounted Battery Master Switch — Product
Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.
BEP Marine 701PM Attributes
- Type:Rotary Switch
- Activation Type:Manual
- Continuous Ampere Rating (A):275 Amp
- Surge Ampere Rating (A):1250 Amp
- Installation Type:Bolt-On
BEP Marine 701PM Features & Benefits
- Compact, Lightweight
- Removable Key
- Countersunk Recesses For Surface Mount Application
- Captive Inserts For 3/16 Inch Nuts Providing Full Access For Cables With No Restrictions
- Standard Interchange Label System
- Molded In High Temperature, Fiber Reinforced Plastics
- Limited 2 Year Warranty
BEP Marine 701PM Technical Bulletins
- 701-PM_USE.pdf
- 701-PM_TCHDAT_dimensions.pdf
Panel-Mounted Battery Master Switch
Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.
- Compact, lightweight
- Removable key
- Countersunk recesses for surface mount application
- Standard 2-1/16″ (52 mm) hole cut out (same as standard gauge hole)
- Inside: captive inserts for 3/16″ (4.8 mm) nuts providing full access for cables with no restrictions
- Standard interchange label system
- Molded in high temperature, fiber reinforced plastics
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Panel-mounted battery main switch; Panel-mounted switch is specially designed for panel-mounted applications. This range provides a very compact universal solution.
SKU: NVN-58597
MPN: 701-PM
UPC: 870216005355
