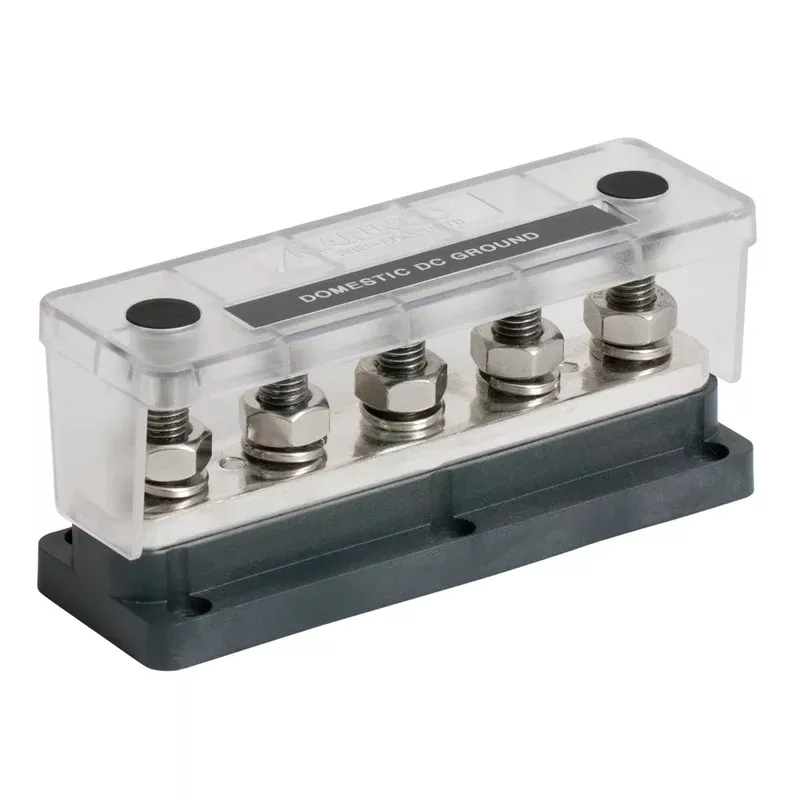

BEP Pro Installer 5-Stud Marine Bus Bar 650A 50V — Product
BEP’s Pro Installer 650-amp 5-stud bus bar is the heavy-current marine bus bar built for serious electrical installations: 650 amps continuous current capacity, 50 volts maximum, five 1/4-inch threaded stainless steel studs (each long enough to stack up to four large cable lugs), copper conductor bar for low resistance, plated brass nuts that don’t gall during tightening, snap-out side skirts for flexible cable entry, and radiused ends for cleaner cable routing. The 5.8 x 1.91 inch compact footprint saves panel space. Common Pro Installer interconnection height makes it easy to link with other Pro Installer products in the BEP electrical-panel ecosystem.The BEP Pro Installer 5-Stud Bus Bar 650A (part 777-BB5S-650) is the heavy-current copper bus bar in the BEP Marine Pro Installer electrical-panel product family. 650 amps of continuous current capacity, 50 volts maximum operating voltage (well above any standard 12V, 24V, or 48V boat electrical system), five 1/4-inch threaded stainless steel studs each long enough to accept up to four large cable lugs stacked, and the copper conductor bar that ties them all together with negligible resistance. The right bus bar for the boat’s primary positive distribution, primary negative ground bar, alternator output collection point, or any other location where you need to combine multiple high-current cables onto one common bus.What 650 amps is right for. 650 amps continuous covers the heaviest typical recreational boat electrical demands: combining the outputs of multiple high-output alternators, distributing main bank battery power to multiple loads, gathering all the negative grounds to one common ground bar on a boat with significant electrical loads (windlass, bow thruster, big inverter, electric trolling motor, multiple battery banks). For typical lighter-duty boats (small center console, runabout, fishing boat without serious electrical loads), the smaller 250A or 500A bus bars in the Pro Installer line are sufficient and save money. For boats with serious electrical loads or for primary distribution points where current load can spike, 650A gives the headroom that keeps the bus from getting hot under load.5 stud configuration. Five terminal studs gives you a cable-connection capacity that handles most boat distribution needs without daisy-chaining bus bars. Each of the 5 studs has long enough thread to accept up to four large cable lugs stacked. That means up to 20 cable lugs total can connect to this single bus bar (5 studs x 4 lugs each), although the practical limit is usually less based on the cable diameters involved. For typical installs you’ll see 2-3 cable lugs per stud rather than 4, which still gives plenty of connection flexibility. For boats needing more terminals than 5, the 8-stud and 10-stud Pro Installer bus bars in the same line provide additional capacity.Copper conductor bar. The internal current-carrying bar is solid copper. Copper is the material of choice for high-current marine bus bars because it has the lowest electrical resistance of any commonly-used conductor material at marine-relevant cost. Lower resistance means less voltage drop across the bus bar at high current, which means more battery voltage actually reaches your loads. It also means less heat generated in the bus bar at high current, which means longer service life and lower fire risk. Cheaper bus bars use plated steel or aluminum bars – those have higher resistance and don’t perform as well under sustained heavy load.Stainless steel studs with plated brass nuts. The threaded studs themselves are stainless steel for corrosion resistance in the marine environment. The matching nuts are plated brass. Why mixed materials: stainless-on-stainless threading has a strong tendency to gall (the threads bind and lock during tightening, sometimes ruining both the stud and the nut). Brass nuts on stainless studs eliminates the galling problem – the threads tighten smoothly through their full torque range without binding. The plating on the brass nuts also resists corrosion. Combined, the materials give you reliable, repeatable torque on every cable connection without the galling risk of an all-stainless setup.Snap-out side skirts for flexible cable entry. The plastic side skirts on the bus bar housing snap out to allow cable entry from any direction needed for the install. Pull off a skirt, route the cable in, snap the skirt back on. Saves the install headache of trying to thread cables through pre-cut holes that don’t align with the cable’s natural routing. For tight engine-compartment installs where cable routing is constrained, the snap-out skirt design saves significant install time.Radiused ends for cleaner cable routing. The end profiles of the bus bar housing are radiused (rounded) rather than square. The rounded ends let cables route around the bus bar at a gentle bend angle without the kink stress that square corners would impose on the cable. For the typical situation where multiple heavy-gauge cables converge on the bus bar from different directions, the radiused ends mean the cables can lay naturally without needing additional supports or zip-tie restraints.Pro Installer common interconnection height. The Pro Installer line of BEP electrical-panel components (bus bars, fuse blocks, busbar covers, isolators, distribution accessories) all share a common interconnection height. That means the bus bar can connect directly to the next Pro Installer component without an awkward height transition or extra jumper bars. For installers building up multi-component electrical panels, the common height saves significant fabrication time and gives a cleaner finished look.Compact footprint. 5.8 inches long by 1.91 inches wide is a meaningful space saving compared to typical marine bus bars in the same current class. For tight engine compartment installs and crowded electrical panels, the compact footprint matters – you can fit the bus bar where larger competing products won’t go.Compatible covers. The bus bar ships without an insulated cover (the studs are exposed for cable installation). Clear polycarbonate covers in matching size are available as a separate purchase from BEP. The covers insulate the studs against accidental short circuits and protect the cable connections from impact. For finished installs in accessible locations (open electrical panels, engine compartments where things get bumped), the cover is a meaningful safety upgrade. For installs inside a sealed electrical box where the bus bar is otherwise inaccessible, you may not need the cover.Mounting. Bolt directly to the boat’s electrical panel mounting surface using the integrated mounting holes in the bus bar housing. Use stainless steel mounting hardware (separately) for marine corrosion resistance. The bus bar must be mechanically secure – cable forces from heavy-gauge cables on the studs put significant lateral and torque load on the bus bar housing, and a poorly-mounted bus bar can flex and eventually crack the housing.Specs at a glance. 650 amps continuous current capacity. 50 volts maximum operating voltage. 5 stainless steel terminal studs (1/4-inch thread). Copper conductor bar. Plated brass terminal nuts. 5.8 x 1.91 inch overall footprint. Compatible with BEP Pro Installer accessory components.What’s in the box. The bus bar with all 5 stainless steel studs and plated brass nuts pre-installed, the snap-on side skirts in place, and the install instruction sheet. Mounting hardware for bolting the bus bar to the panel is sold separately (the right mounting hardware varies by panel material). The optional polycarbonate insulating cover is sold separately.Note on California Prop 65. The bus bar carries a Prop 65 warning for DEHP (in the plastic housing material). Standard label for marine plastic accessories sold in California, not unique to this product.2-year limited BEP Marine warranty. Same-day shipping before 3 PM ET on in-stock units.
Key Features
- Heavy-current 5-stud marine bus bar in the BEP Pro Installer line
- 650 amps continuous current capacity, 50 volts maximum operating voltage
- Copper conductor bar for low resistance and low voltage drop under load
- Five stainless steel threaded studs (1/4 inch thread)
- Each stud accepts up to four large cable lugs stacked
- Plated brass nuts on stainless studs prevent thread galling during tightening
- Snap-out side skirts for flexible cable entry direction
- Radiused housing ends for cleaner natural cable routing
- Compact 5.8 x 1.91 inch footprint saves panel space
- Common Pro Installer interconnection height for clean integration with other Pro Installer components
- Compatible polycarbonate insulating covers available separately
- Manufacturer Part Number 777-BB5S-650
- 2-year limited BEP Marine warranty
