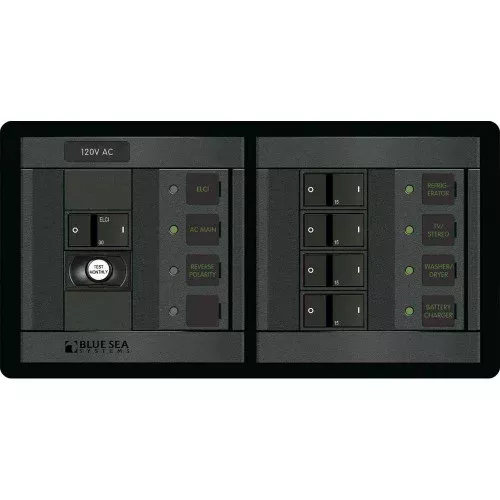

Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal[1193]

ELCI Main 30A Double Pole + 4 Positions Horizontal

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate – 30 mA
• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
• Four 15A AC Branch Flat Rocker Circuit Breaker
• Red ” Reverse Polarity” LED
• Includes 4206 AC Panel Basic Square Format Label Set
• All circuit label positions are backlit
• “ON” indicating LEDs

Specifications:

• Positions:1
• Nominal Voltage:120V AC
• Height:4.75″ (120.65mm)
• Width:4.88″ (123.95mm)
• Depth:3.99″ (101.35mm)
• Weight:1.00lb (0.45kg)

Includes:
(4) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 3102100 – A-Series ELCI Main Circuit Breaker – Double Pole 120V AC 30AWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:

• AC/DC: AC
• Box Dimensions: 5″H x 9″W x 13″L WT: 3.8 lbs
• UPC: 632085011932

Quick Guide (pdf)
Owner’s Manual (pdf)View AllClose
