Product

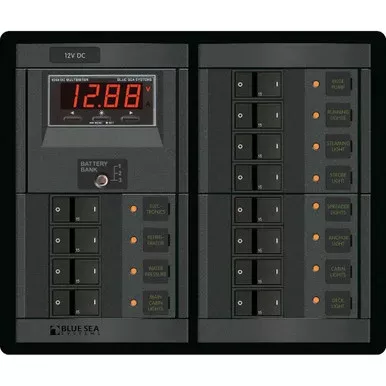

12 Volt DC 12 Position w/Digital Meter
Features:
- 4 to 32 branch circuits with installed 15 Ampere circuit breakers
- Available with voltmeters, ammeters, and digital multimeters
- Includes 4205-Square Format Label Set
Specifications:
- Positions:12
- Nominal Voltage:12V DC
- Maximum Amperage*:100A per bus
- Height:7.75″ (196.85mm)
- Width:9.25″ (234.95mm)
- Depth:4.00″ (101.6mm)
- Weight:5.99lb (2.72kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(12) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]
(1) – 8248 – DC Digital Multi-Function Meter with Alarm (Meter)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
