Blue Sea 1456 8 Position Switch CLB Horizontal — Product

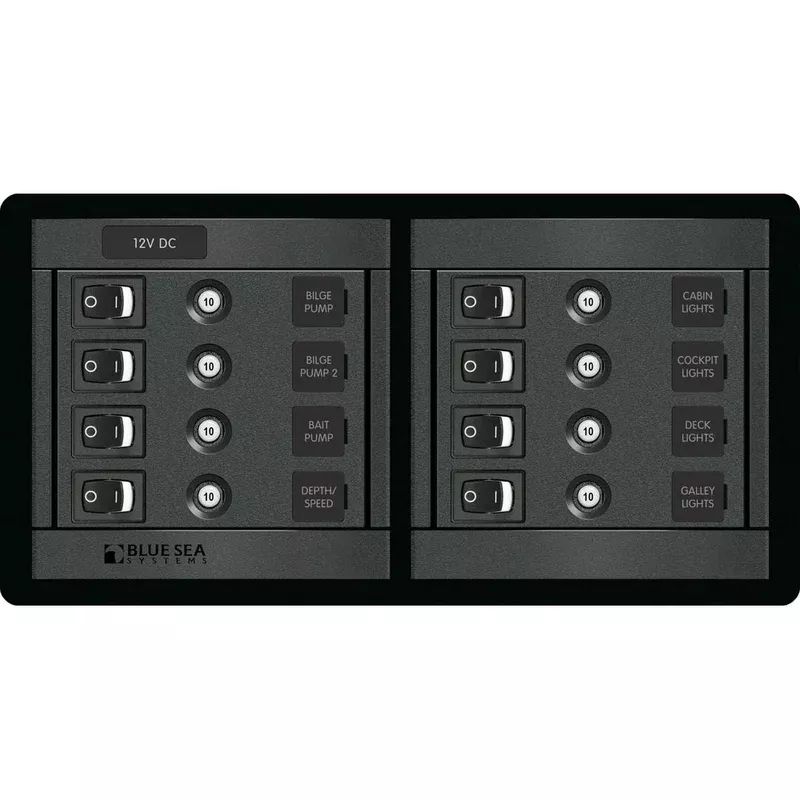

8 Position Switch CLB Horizontal
Features:
- Available with voltmeters and ammeters
- Panels with meters include a toggle switch to monitor voltage on up to three battery banks
- Includes 4205-Square Format Label Set
Specifications:
- Positions:8
- Nominal Voltage:12V DC
- Maximum Amperage*:80A
- Height:4.75″ (120.65mm)
- Width:9.25″ (234.95mm)
- Depth:3.50″ (88.9mm)
- Weight:2.89lb (1.31kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) – 7480 – Rocker Switch SPST – ON-OFF
(8) – 7054 – Push Button Reset Only Quick Connect Circuit Breaker – 10 Amps
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Blue Sea Systems 8-position 12V DC CLB horizontal button panel. 360 panel system. Provide circuit protection and switching in a compact and economical panel. 8 10A…
SKU: NVN-57221
MPN: 1456
UPC: 632085014568
