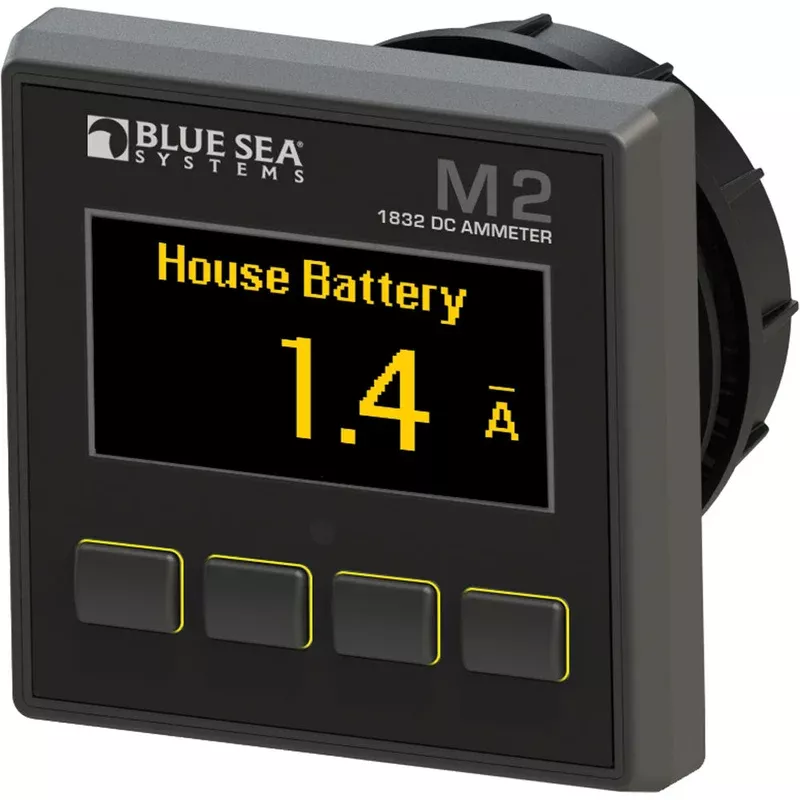

Blue Sea 1832 M2 DC Ammeter — Product
M2 DC Ammeter
Monitors DC Amperage with large, bright display. Accurately measure and monitor the amperage of your DC system. (measures 2 circuits) Supports programmable shunt ratios.
Features:
- Auto-dimming, bright OLED display is easy to read
- Easy to adjust
- 92dB alarm on all models
- Isolated MOSFET relay
Specifications:
- Meter: Current
- Function: to 5000A (500A with included shunt)
- Alarms: High Current
- Display Size: 55mm x 28mm
- Input Voltage: 7-70V DC
- Maximum Power Consumption: 1.00Watt
- Minimum Power Consumption: 0.3 Watt
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
“The M2 OLED Digital Monitors measure essential electrical system parameters with adjustable alarms and an auto-dimming display in a compact enclosure. The gasket creates a waterproof seal on the unit face. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2. The M2 External Circuit Relay is separate from and independent of the Internal Alarm function.”
SKU: NVN-54764
MPN: 1832-BSS
UPC: 632085018320
