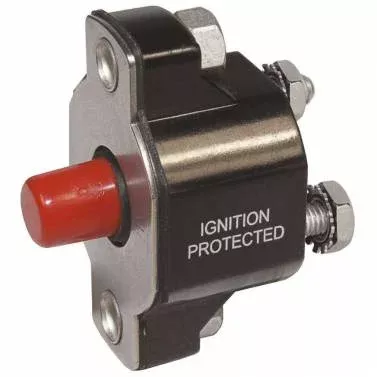

New Blue Sea Systems Medium Duty Push Button Reset Only Circuit Breaker – 20A. Part number 2139.
Features
- Weatherproof
- Can be used as Main, Branch, or 24 hour circuit protection
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- Trip Free design cannot be held ON during fault current condition
- Ignition protected – Safe for installation aboard gasoline powered boats
- Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts
Specifications
- Amperage: 20A
- Maximum Voltage: 120V AC, 32V DC
- Circuit Breaker Type: Thermal trip, manual push-button reset only
- Terminal Stud Torque: 30 in-lb (3.39 Nm)
- Interrupt Capacity: 3000A @ 120V AC, 5000A @ 32V DC
- Minimum Operating Temperature: -54 degree C
- Maximum Operating Temperature: 74 degree C
- Mounting Screw Thread: 8-32
- Terminal Stud: 10-32 Stainless Steel
- Weight: 0.16lb (0.07 kg)
