02 · Overview

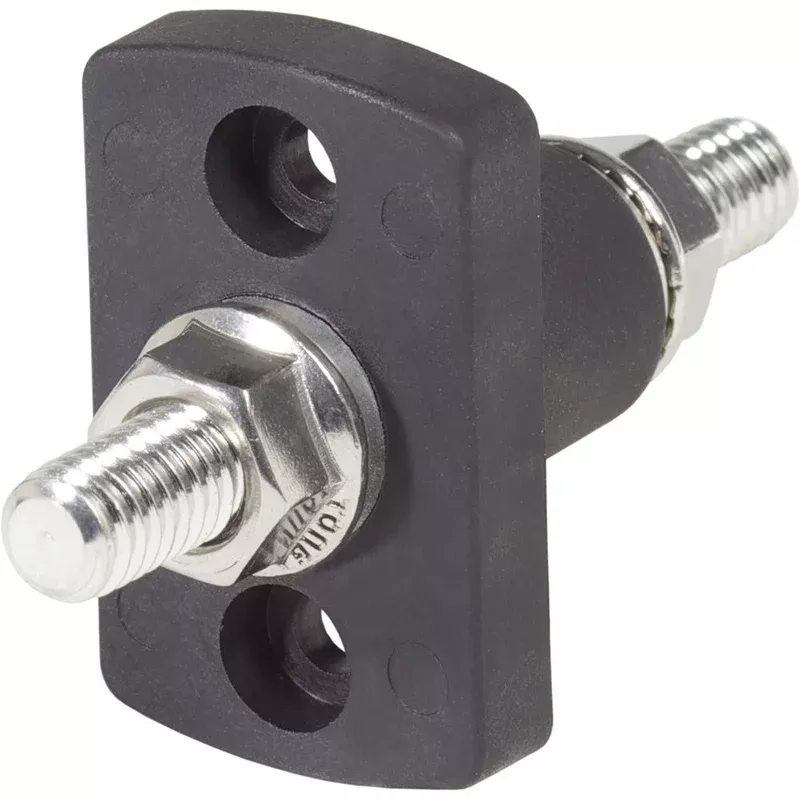

Blue Sea 2203 Black Terminal Feed Through Connector — Product
Eliminates change and provides strain relief when passing high current through hulls, decks and bulkheads. The large terminals have a mounting face that can be gasketed or bedded to provide a water tight installation.
Blue Sea 2203BSS Attributes
- Type:Terminal Feed Through Connector
- Number Of Terminals:1
- Voltage Rating:48 Volt
- Ampere:250 Amp
- Length (IN):3.13 Inch
- Width (IN):2 Inch
- Material:Reinforced Thermoplastic Base With Tin-Plated Copper Alloy Stud
- With Insulated Cover:No
Blue Sea 2203BSS Features & Benefits
- Perfect For Passing High Current Cables Through Hulls, Decks And Bulkheads
- Large Size Terminals Have A Mounting Face That Can Be Gasketed Or Bedded To Provide A Water Tight Installation
- Large Cables Passed Through Holes Are Subject To Chafing Even When Protective Grommeting Is Used
- Terminal Feed Through Connectors Eliminate Chafing And Provide Excellent Strain Relief For The Cable
- Rated IP66 — Withstands Water From Heavy Seas
- No Supplier Warranty
Blue Sea 2203BSS Technical Bulletins
- 2203-2204.pdf
Terminal Feed Through ConnectorsEliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads.Features:
- Perfect for passing high current cables through hulls, decks and bulkheads
- Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
- Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
- Rated IP66 — withstands water from heavy seas
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Blue Ocean System 3/8″ -16 250A rating, black. Eliminates acne damage from wires passing through bulkheads. Cables passing through bulkheads, decks or any hard surface…
SKU: NVN-20212
MPN: 2203-BSS
UPC: 632085022037
