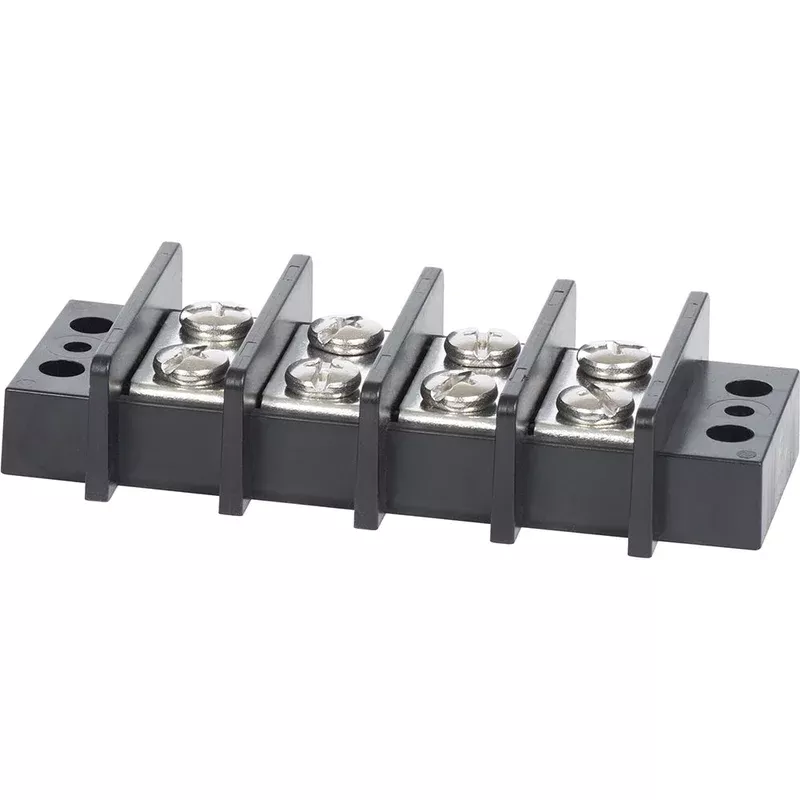

Blue Sea 2604 Terminal Block 65AMP – 4 Circuit — Product
Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.
Blue Sea 2604BSS Attributes
- Number Of Pole:8 Pole Double Row
- Connection Material:Brass
- Voltage Rating:600 Volt AC/DC
- Ampere Rating:65 Amp
- Termination Type:Screw-On
- Color:Black
- Material:Phenolic
Blue Sea 2604BSS Features & Benefits
- Closed Back Design Completely Insulates Power From The Mounting Surface
- Each Screw Pair Is One Isolated Circuit
- Jumpers Allow Creation Of Common Circuits
- Fully Insulated Independent Terminal Blocks To Isolate Circuits
- No Supplier Warranty
Blue Sea 2604BSS Technical Bulletins
- 2602-2610.pdf
2604 Terminal Block 65AMP – 4 Circuit
Features:
- Closed back design completely insulates power from the mounting surface
- Each screw pair is 1 isolated circuit
- Jumpers allow creation of common circuits
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Blue Sea Systems 4 circuit terminal block, 65A AC / DC 600V. Fully insulated independent terminal blocks can be used to isolate circuits. These Blue Sea Systems rib insulators…
SKU: NVN-14588
MPN: 2604-BSS
UPC: 632085026042
