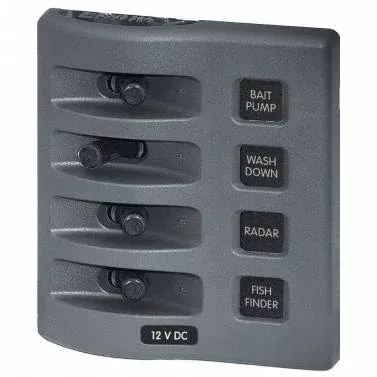

New Blue Sea Systems WeatherDeck 12V DC Waterproof Switch Panel – 4 Position. Part number 4305.
Features
- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Specifications
- Weatherproof: Waterproof
- Positions: 4
- Nominal Voltage: 12V DC, 24V DC
- Circuit Protection: None
- Maximum Amperage: 15A @ 12V DC (per circuit)
- Panel Cumulative Rating: 45A
- Material: Reinforced Polycarbonate
- Height: 4.30in (109.22 mm)
- Width: 3.88in (98.55 mm)
- Depth: 2.50in (63.5 mm)
- Weight: 0.90lb (0.41 kg)
