Blue Sea 4307 WeatherDeck® 12V DC Waterproof Switch Panel – 6 Position — Product

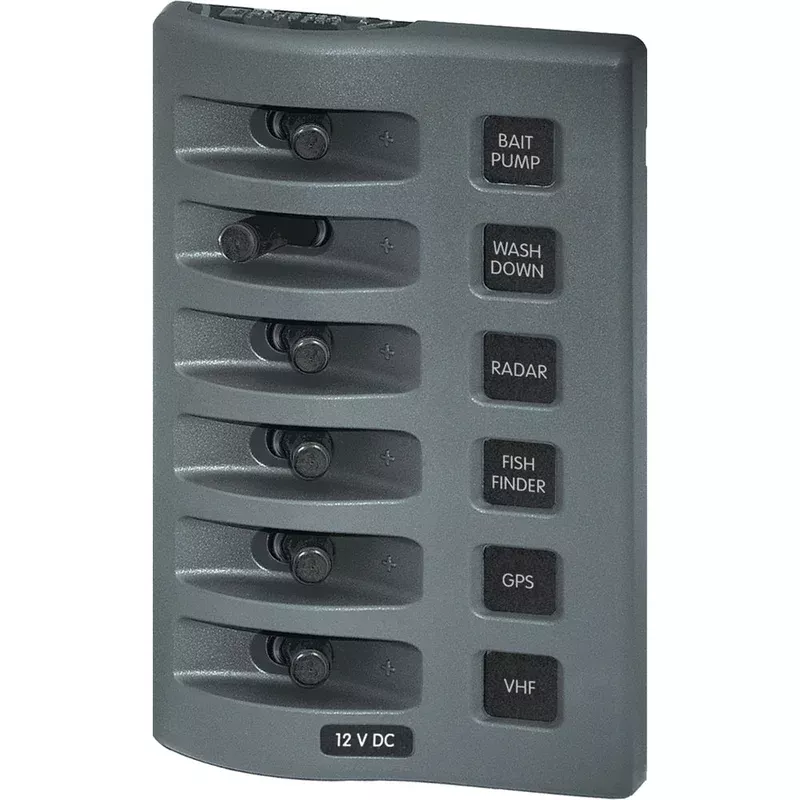

WeatherDeck® 12V DC Waterproof Switch Panel – 6 Position
- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Weatherproof:Waterproof
Positions:6
Nominal Voltage:12V DC/24V DC
Circuit Protection:None
Maximum Amperage:15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material:Reinforced Polycarbonate
Height:6.00″(152.4 mm)
Width: 3.88″(98.55 mm)
Depth:2.50″(63.5 mm)
Weight:1.15lb (0.52 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Many switch panels installed on the dashboard or flybridge cannot withstand the harsh marine environment. The Weather Deck switch panel is waterproof and rated IP67 (temporary use).
SKU: NVN-51815
MPN: 4307-BSS
UPC: 632085043070
