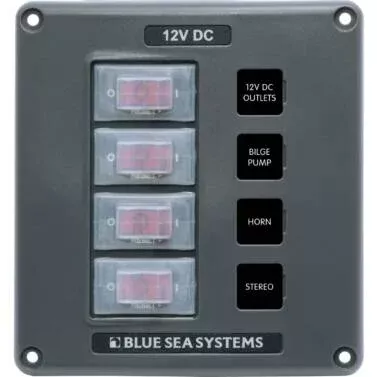

Blue Sea 4320 Water-Resistant Circuit Breaker Switch Panel – Gray, 4 Positions
Overview
Designed for exposed mounting applications.
Features
- Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
- Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
- Polycarbonate/ABS panel surface is UV-stabilized, ?ame retardant, and will not corrode
- Silicon breaker boots and gasket protects against water ingress
- Low profle makes it easy to install in tight spaces
- Fast-on circuit breaker connectors make it quick to wire
- Two-wire connection for powering all panels is simple and requires 10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Specifications
- Color: Gray
- Positions: 4
- Nominal Voltage: 12V DC
- Maximum Amperage: 45A
- Terminal Type: 1/4″ Male quick connect
- Hardware: Stainless Steel 6 x 5/8″ mounting screws
- Ring Terminal Size: M5 (10)
- Height: 5.0in (127 mm)
- Depth: 1.75in (44.45 mm)
