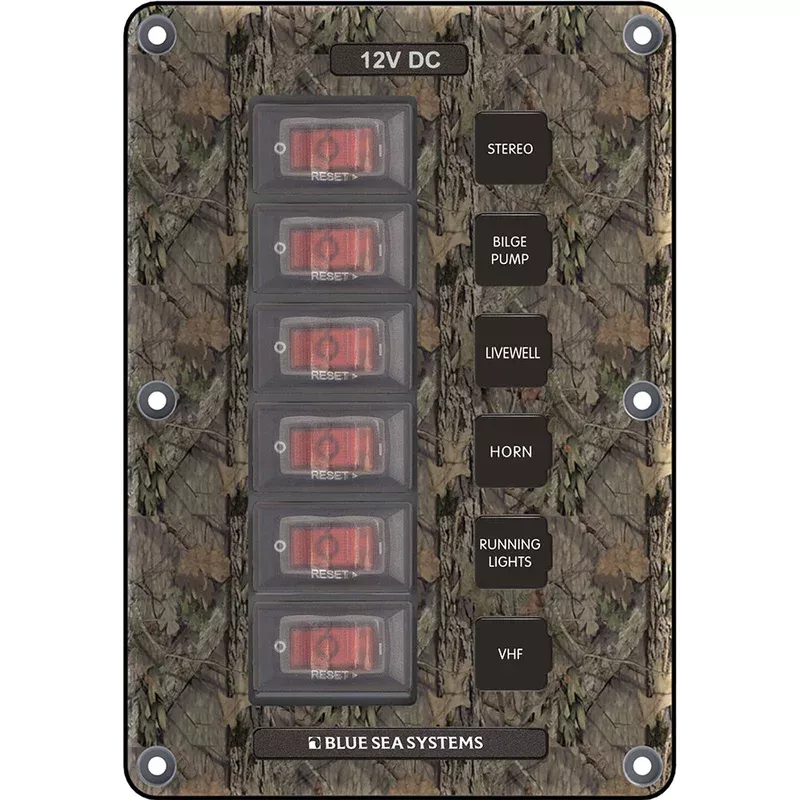

Blue Sea 4325 Circuit Breaker Switch Panel 6 Position – Camo — Product
4325 Circuit Breaker Switch Panel 6 Position – CamoDesigned for exposed mounting applications.Features:
- Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
- Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Silicon breaker boots and gasket protects against water ingress
- Low profle makes it easy to install in tight spaces
- Fast-on circuit breaker connectors make it quick to wire
- Two-wire connection for powering all panels is simple and requires 10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Specifications:
- Color: Camo
- Positions: 6
- Nominal Voltage: 12 VDC
- Maximum Amperage: 45A
- Terminal Type: 1/4″ Male Quick Connect
- Hardware: Stainless Steel 6 x 5/8″ mounting screws
- Ring Terminal Size: M5 (10)
“Water resistant circuit breaker switch panel is made with high-quality polycarbonate/ABS. The panel is UV-stabilized and flame retardant. This product will not corrode. Silicon breaker boots and gaskets protect against water ingress.”
SKU: NVN-75113
MPN: 4325
UPC: 632085043254
