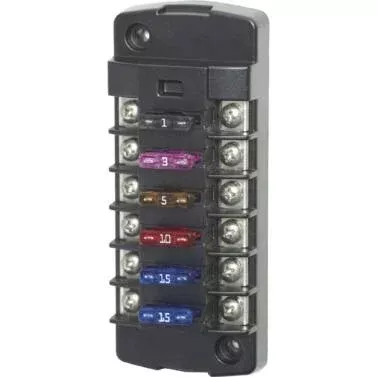

Blue Sea 5037 Marine ST Blade Fuse Block – 6 Independent Circuits
Features
- Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
- Accepts ring or snap fork type terminals
- Includes two terminal block jumpers
Specifications
- Circuits: 6
- Maximum Amperage: 30A per circuit, 40A per jumped circuit group
- Maximum Voltage: 32V DC
- Mounting: 8 Screw (M4)
- Screw Terminal Torque: 18 in-lb (2.03 Nm)
- Screw Terminal Type: 8-32 with Captive Star Lockwasher
- Weight: 0.35lb (0.16 kg)
