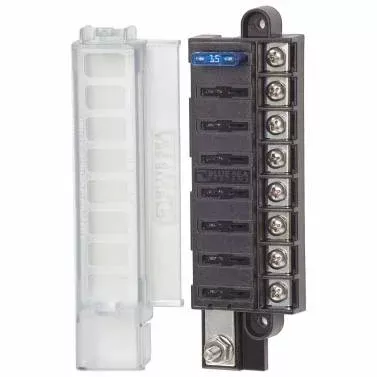

New Blue Sea Systems ST Blade compact fuse block with 8 circuits. Part number 5046. Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint.
Features
- Ignition protected when cover is secure -meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize footprint
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 8 write-on circuit labels
- Fuses sold separately
Specifications
- Circuits: 8
- Maximum Amperage: 100A per block, 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: 8 Screw (M4)
- Terminal Stud Torque: 24 in-lb (2.71 Nm)
- Screw Terminal Torque: 18 in-lb (2.03 Nm)
- Screw Terminal Type: 8-32 Scews with captive star lock washer
- Terminal Stud Size: 10-32
