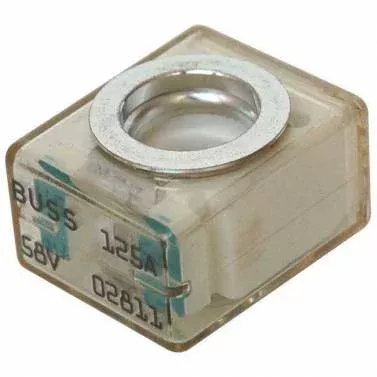

New Blue Sea Systems MRBF Terminal Fuse – 125A. Part number 5184. Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151.
Features
- Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151, do not mount the fuse directly to the battery terminal
- Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
- Ignition protected-safe for installation aboard gasoline powered boats
- Clear window-visual indication of blown condition
- Color coded for each amperage
Specifications
- Amperage: 125A
- Maximum Voltage: 58V DC
- Interrupt Capacity: 10000A @ 14V DC, 5000A @ 32V DC, 2000A @ 58V DC
- Weight: 0.06lb (0.03 kg)
