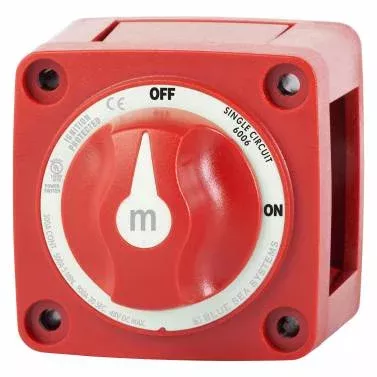

New Blue Sea Systems M-Series mini on/off battery switch with knob. Red in color. Part number 6006. Switches a single battery to a single load group.
Features
- Ignition protected, safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
Specifications
- Switch Type: Single Circuit ON-OFF
- Color: Red
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 48V DC
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Continuous Rating: 300A
- Intermittent Rating: 500A (5 min)
- Cranking Rating 10 sec: 1500A
- Cranking Rating 1 min: 775A
- Battery Inputs: 1
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm sq)
- Mounting Holes: Accept 10 Screw
- Terminal Stud Size: 3/8″ – 16 (M10)
- Weight: 0.65lb (0.29 kg)
