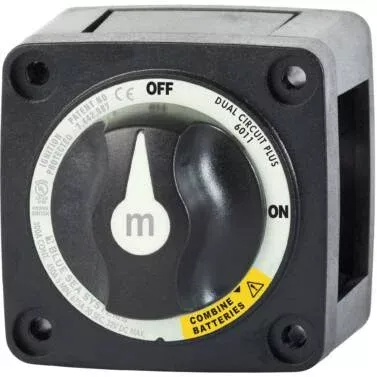

Blue Sea 6011200 m-Series Mini Dual Circuit Plus Battery Switch – Black
Overview
Simultaneously switches two isolated battery banks or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption.
Specifications
- Switch Type: Dual Circuit Plus
- Color: Black
- Switch Positions: 3
- Battery Combine: Yes
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Stud Size: 3/8″
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Continuous Rating: 300A
- Intermittent Rating: 450A (5 min)
- Cranking Rating 30 sec: 675A per circuit
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept 10 Screw
- Stud Material: Tinned Copper
- Stud Torque: 120 in-lb (13.56 Nm)
- Terminal Stud Size: 3/8″ – 16 (M10)
- Weight: 0.80lb (0.36 kg)
