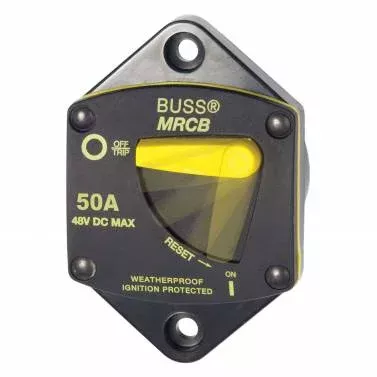

New Blue Sea Systems 187-Series Circuit Breaker – Panel Mount 50A. Part number 7039.
Features
- Combines switching and circuit protection into a single device*
- Clear, single lever operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large Clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected – Safe for installation aboard gasoline powered boats
* Do not use as a switch where high inrush currents are expected.
Specifications
- Amperage: 50A
- Maximum Voltage: 48V DC
- Mounting: Panel Mount
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Terminal Stud Torque: 75 in-lb (8.47 Nm)
- Interrupt Capacity: 5000A @ 12V, 3000A @ 24V, 1500A @ 42V
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Case Material: Thermoset Polyester
- Circuit Breaker Class: Type III – switchable/manual reset – trip free
- Mounting Hole: Accept 10 (M5) Screw
- Terminal Stud Size: 5/16″ – 18
- Weight: 0.50lb (0.23 kg)
