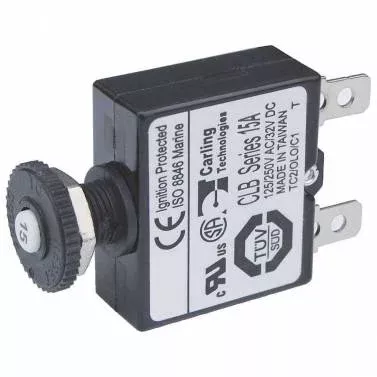

New Blue Sea Systems Push Button Reset Only Quick Connect Circuit Breaker – 15 Amps. Part number 7056.
Features
- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- Trip Free design cannot be held ON during fault current condition
- Ignition protected – Safe for installation aboard gasoline powered boats
- Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
Specifications
- Amperage: 15A
- Maximum Voltage: 32V DC
- Mounting: Panel Mount 3/8-27 UNS
- Circuit Breaker Type: Thermal trip, manual push-button reset only
- Terminal Type: 1/4 Male Quick Connect
- Interrupt Capacity: 3000A @ 14.7V, 2500A @ 28V
- Minimum Operating Temperature: -10 degree C
- Maximum Operating Temperature: 60 degree C
- Screw Terminal Torque: 6 in-lb (0.68 Nm)
- Weight: 0.06lb (0.03 kg)
