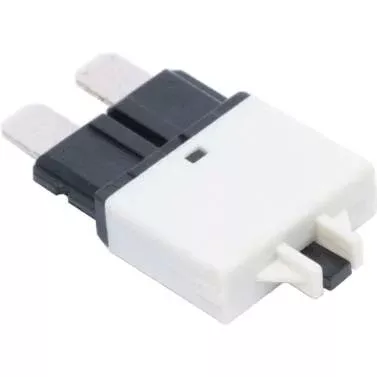

Blue Sea 7067 Marine ATO/ATC-Style Low Profile – 25A
Overview
Use a manually resettable circuit breaker instead of an ATO or ATC fuse.
Features
- Drop in replacement for ATO and ATC blade style fuses
- Manual push button reset complies with ABYC circuit protection requirements
- Compatible with Water-Resistant ST-Blade Fuse Block with cover secured
- Compatible with all other ST-Blade Fuse blocks without cover
Specifications
- Amperage: 25A
- Color: White
- Maximum Voltage: 32V DC
- Circuit Breaker Type: Thermal trip, manual reset
- Interrupt Capacity: 2000A @ 28V DC
- Minimum Operating Temperature: -30 degree C
- Maximum Operating Temperature: 77 degree C
