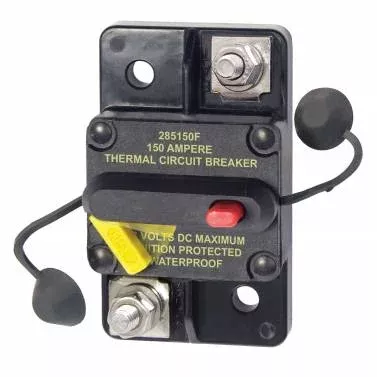

New Blue Sea Systems 285-Series Circuit Breaker – Surface Mount 150A. Part number 7189.
Features
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected – Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- “Trip Free” – cannot be held closed after trip
Specifications
- Amperage: 150A
- Maximum Voltage: 48V DC
- Mounting: Surface Mount
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Terminal Stud Torque: 50 in-lb (5.65 Nm)
- Interrupt Capacity: 3000A @ 48V
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Circuit Breaker Class: Type III – switchable/manual reset – trip free
- Terminal Stud: M6 (accepts 1/4″ Ring Terminal)
- Weight: 0.50lb (0.23 kg)
