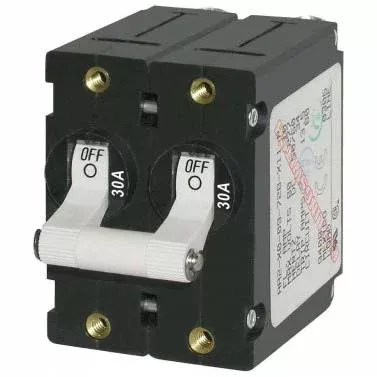

New Blue Sea Systems A-Series White Toggle Circuit Breaker – Double Pole 30A. Part number 7238.
Features
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems’ electrical panels
- Combines swtiching and circuit protection into a single device
- “Trip Free” design cannot be held “ON” during fault current condition
Specifications
- Amperage: 30A AC, 30A DC
- Color: White
- Actuator Style: Toggle
- Poles: 2
- Maximum Voltage: 250V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic – trip free
- Interrupt Capacity: 3000A @ 120V AC, 3000A @ 240V AC, 1500A @ 250V AC [TUV], 3000A @ 250V AC [UL 1077], 7500A @ 65V DC
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: 6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: 10-32 Stainless Steel
- Weight: 0.30lb (0.14 kg)
