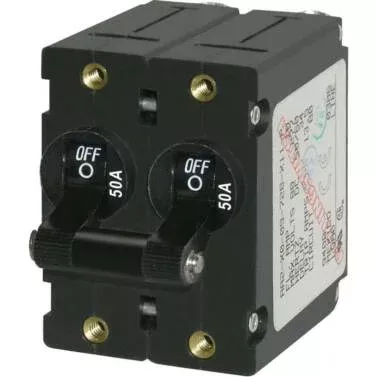

Blue Sea 7241 Marine A-Series Black Toggle Circuit Breaker – Double Pole 50A
Features
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems’ electrical panels
- Combines switching and circuit protection into a single device
- “Trip Free” design cannot be held “ON” during fault current condition
Specifications
- Amperage: 50A AC, 50A DC
- Color: Black
- Actuator Style: Toggle
- Poles: 2
- Maximum Voltage: 120V AC, 240V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic – trip free
- Interrupt Capacity: 3000A @ 120V AC, 3000A @ 240V AC, 1500A @ 240V AC [TUV], 3000A @ 240V AC [UL 1077], 7500A @ 65V DC
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: 6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screws: 10-32 Stainless Steel
- Weight: 0.30lb (0.14 kg)
