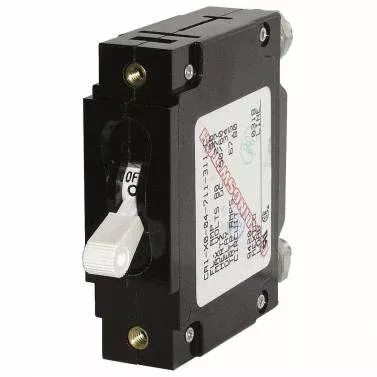

New Blue Sea Systems C-Series White Toggle Circuit Breaker – Single Pole 10 Amp. Part number 7351.
Features
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- “Trip Free”-cannot be held closed after trip
Specifications
- Amperage: 10A AC, 10A DC
- Color: White
- Actuator Style: Toggle
- Poles: 1
- Maximum Voltage: 250V AC, 80V DC
- Circuit Breaker Type: Magnetic Hydraulic – trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 5000A @ 125V AC, 5000A @ 250V AC, 10000A @ 80V DC
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: 6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Switching Cycles: 10000
- Terminal Stud: 1/4-20 Tin-Plated Brass
- Weight: 0.25lb (0.11 kg)
