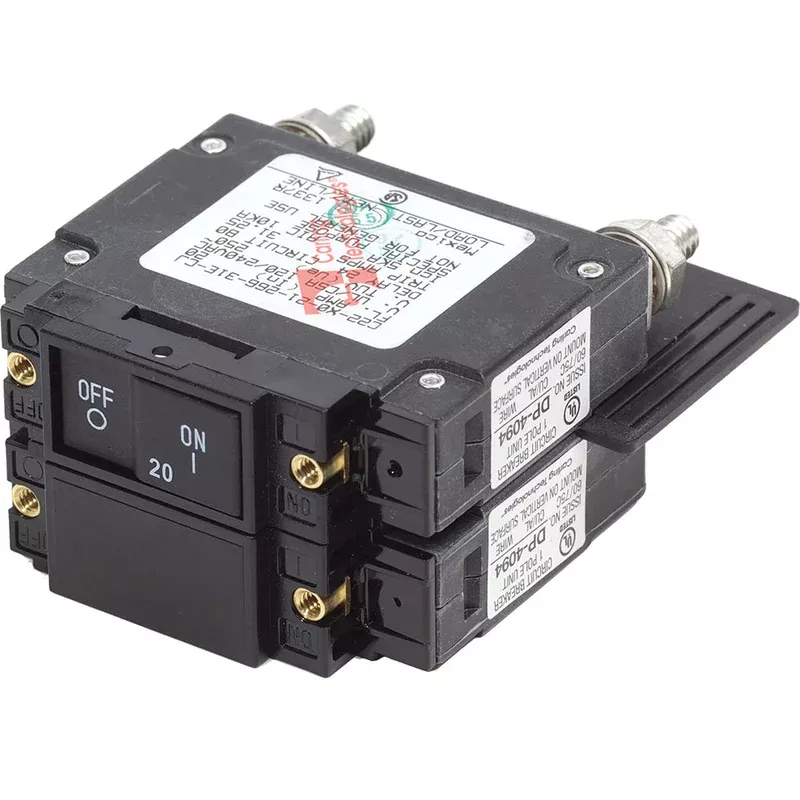

Blue Sea 7463 UL-489 Circuit Breaker – 20A Flat Rocker — Product
7463 UL-489 Circuit Breaker – 20A Flat RockerSuitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)Specifications:
- Amperage: 20A AC
- Actuator Style: Flat Rocker
- Poles: 2
- Maximum Voltage: 240V AC
- Circuit Breaker Type: Magnetic Hydraulic—Trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: 6-32 SS
- Mounting Screw Torque: 8 in-lb (0.9 Nm)
- Switching Cycles: 10000
- Weight: 0.23lb (0.1 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
“Blue Sea 7463 Ul-489 Circuit Breaker Brand New Product 7463 The Blue Sea Systems 7463 Ul-489 Circuit Breaker is a that features a Magnetic Hydraulic – trip free, that is rated to 20A and sustain a maximum voltage of 240V AC. It has a flat rocker style actuator which is flush in the ON position, eliminating the risk of accidential switching with a Color actuator that indicates OFF position. The circuit breaker provides overcurrent protection for inverters, bow thrusters, and windlasses by combining switching and circuit protection into a single device. The breaker is easy to install with the provided mounting screws. Suitable for use when Ul-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46).”
SKU: NVN-69573
MPN: 7463
UPC: 632085074630
