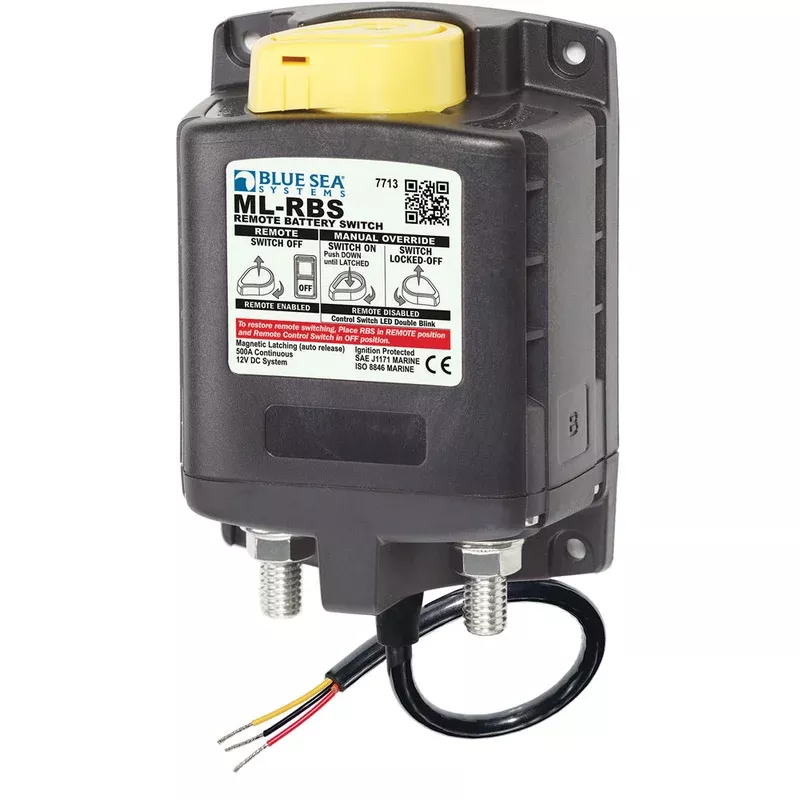

Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release – 12V — Product
Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500 Ampere switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired.
Blue Sea 7713BSS Attributes
- Type:Push/ Pull
- Activation Type:Manual
- Continuous Ampere Rating (A):500 Amp
- Surge Ampere Rating (A):700 Amp
- Installation Type:Bolt-On
Blue Sea 7713BSS Features & Benefits
- Manual Override Knob Provides An Added Level Of Safety Allowing Control With Or Without Power And Offering LOCKED OFF Capability For Servicing
- LED Output To Remotely Indicate Switch State
- Silver Alloy Contacts Provides High Reliability For Switching Live Loads
- 3/8 Inch -16 Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
- 7/8 Inch Stud Length Accepts Multiple Cable Terminals
- Label Recesses For Circuit Identification
- No Supplier Warranty
Blue Sea 7713BSS Installation Instructions
- 990180170-006.pdf
ML-RBS Remote Battery Switch with Manual Control Auto-Release – 12V
- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state – requires optional LED
- 3/ 8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/ 8″ (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired
Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:12V DC
Coil Function: Auto releasing
Mounting:10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state:<7A (40 ms)Control Circuit Voltage:10.1 to 16.5V DCContinuous Rating: 500AIntermittent Rating: 700A (5 min)Cranking Rating: 10 sec 2500ACranking Rating: 1 min 1100AMinimum Operating Temperature:-10° CMaximum Operating Temperature:50° CCable Size to Meet Ratings:2x (4/0)Live Current Switching:300A @ 12V DC 10,000 CyclesMaster Control Switch Capability:YesMechanical Endurance:100,000 CyclesSwitching Cycles:100,000Terminal Ring Diameter Clearance:1.18″ (29.97mm)Terminal Stud Length:0.875″ (22.23mm)Terminal Stud Size:3/8-16 (M10)Terminal Stud Torque:140 in-lb (15.82 Nm)Weight:1.75lb (0.79 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. The ML-RBS 12V remote battery switch has the manual control automatic release function of Blue Sea Systems (7713). The 500 Amp magnetic latch switch can be used in load,…SKU: NVN-53464MPN: 7713UPC: 632085077129
