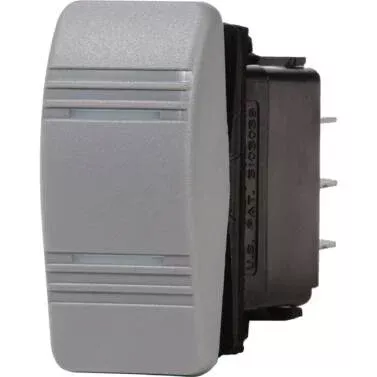

Blue Sea 8220 Marine Contura Switch DPDT Gray – ON-OFF-ON
Features
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems” water resistant panels
- Ignition Protected – Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
Specifications
- Action: ON-OFF-ON
- Pole / Throw: DPDT
- Actuator Color: Gray – Contura III
- Common Applications: combining nav lights or anchor light with shared bulb
- Maximum Amperage: 20A @ 12V, 15A @ 24V
- Amperage Operating Current: 18mA (LED)
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Actuator Position to Light LED: ON
- Embedded LEDs: 2
- Lighting: LED rated 100,000 hours half-life
- Seals: Internal and external gasket panel seal
- Weight: 0.09lb (0.04 kg)
