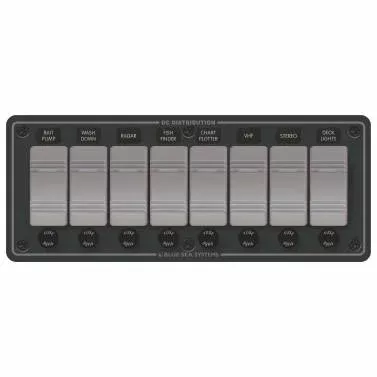

New Blue Sea Systems Contura waterproof power distribution panel with waterproof switches and fuse holders. Part number 8261. Has 8 positions and comes fully wired and ready for installation. For 12V and 24V DC systems.
Features
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Includes Blue Sea 8214 Black 60 Label Set
Specifications
- Positions: 8
- Nominal Voltage: 12V DC
- 24V DC
- Panel Cumulative Rating: 90A
- Switch Rating: 20A @ 12V DC
- 15A @ 24V DC
- Height: 3.75in (95.25 mm)
- Width: 9.37in (238 mm)
- Depth: 3.00in (76.2 mm)
- Weight: 1.40lb (0.64 kg)
