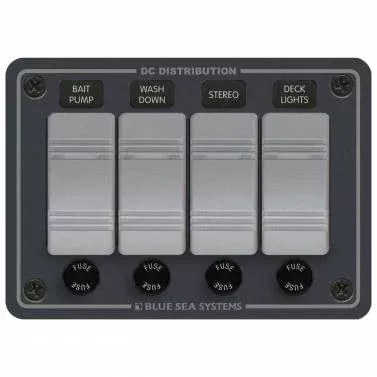

New Blue Sea Systems waterproof power distribution panel 12/24 volt DC 4-position. Part number 8262. Fully wired and ready for installation with waterproof switches and fuse holders.
Features
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Includes Blue Sea 8214 Black 60 Label Set
Specifications
- Positions: 4
- Nominal Voltage: 12V DC, 24V DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A @ 12V DC, 15A @ 24V DC
- Height: 3.75in (95.25 mm)
- Width: 5.25in (133.35 mm)
- Depth: 3.00in (76.2 mm)
- Weight: 0.75lb (0.34 kg)
