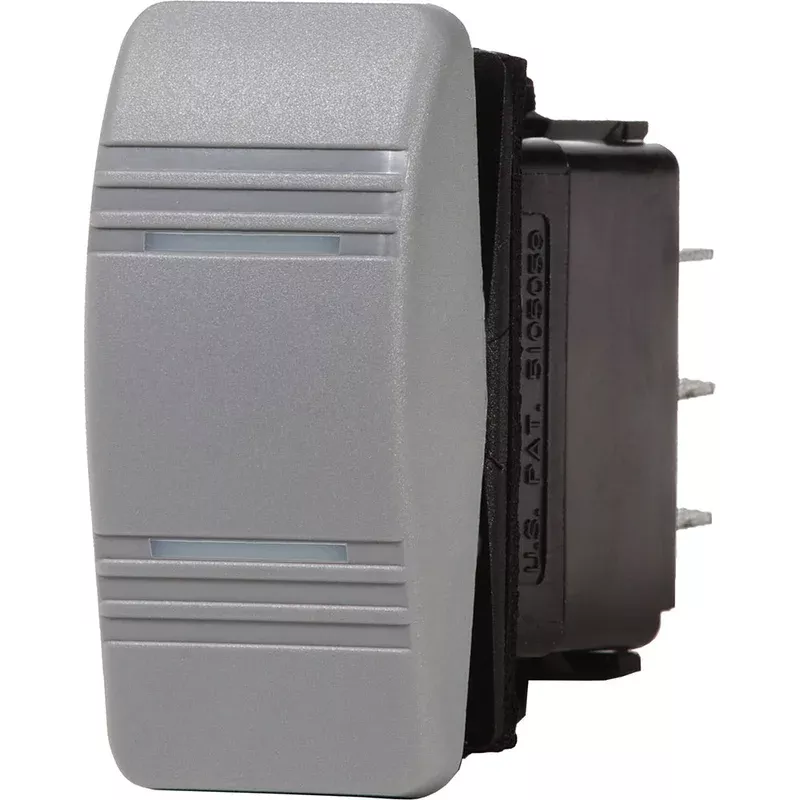

Blue Sea 8275 Water Resistant Contura III Switch – Gray — Product
Water Resistant Contura Switch – Gray
| PN: | 8275 |
| Pole: | Double |
| Throw: | Double |
| Action ( ) = momentary: | ON – ON |
| Embedded LEDs: | 2 |
Features:
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems’ water resistant panels
- Ignition Protected – Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
| Specifications | |
| Rating: 12 Volts DC | 20 Amperes |
| Rating: 24 Volts DC | 15 Amperes |
| Lighted | LED rated 100,000 hours 1/2 life |
| Seals | Internal and external gasket panel seal |
| Temperature Rating | -40°C to 85°C |
| Mounting Hole | 1.45″ x 0.83″ |
| LED Amperage | 18 Milliamperes |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Using the Contura switch to change the switch function on the Blue Sea Systems waterproof panel completely replaces the switch on the Blue Sea Systems Contura III waterproof panel…
SKU: NVN-20780
MPN: 8275
UPC: 632085082758
