02 · Overview
Blue Sea 8379 DC Main + 20 Positions — Product
Main + 20 Positions
White Switches
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All circuit label positions are backlit on standard panels – No kit required
- “ON” indicating LEDs installed in all circuit positions
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8″ aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Panel Labels
- Over 500 individual labels available
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

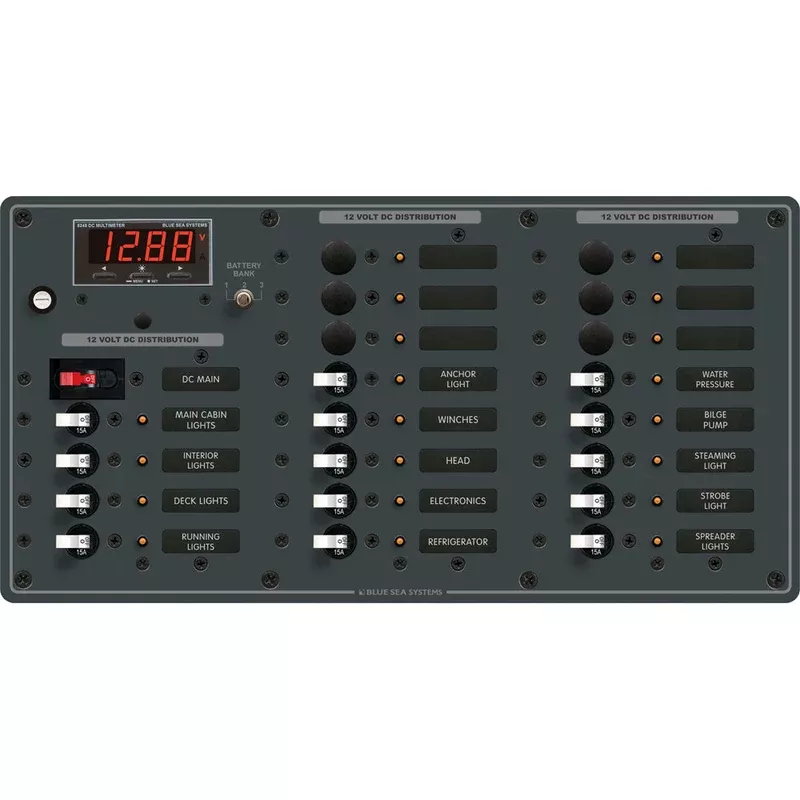

DC switchboard, MFG8379, white toggle switch circuit breaker and digital volt/ampere meter. 1ea 100 Amp main power supply, 14ea 15 Amp branch circuit, 6ea open slot. 12 or 24 VDC. 14.75 inches (width) x 7.5 inches (height).
SKU: NVN-20818
MPN: 8379
UPC: 632085083793
