Boat part number 1113735 is a new ST CLB Circuit Breaker Block from Blue Seas Systems, part number 5050 .
The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

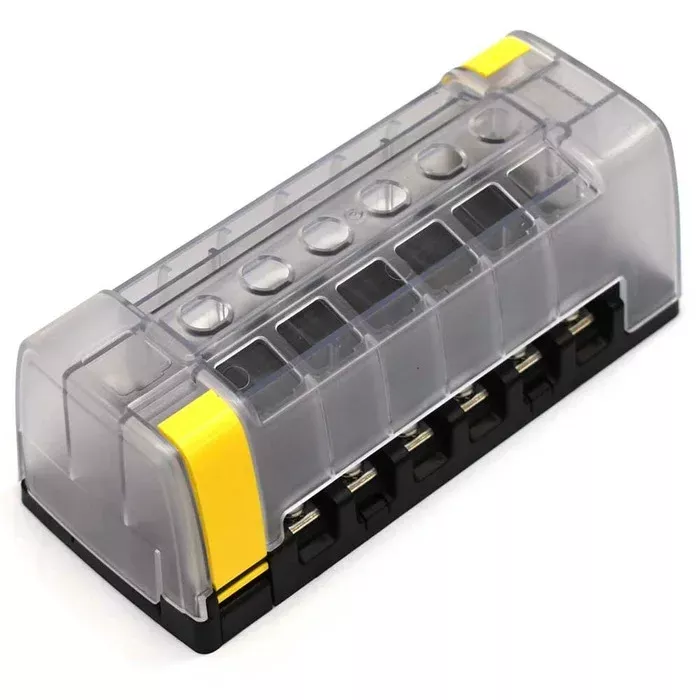

This circuit breaker block is constructed out of black plastic with a clear plastic cover. It measures approximately 6 3/4″ L x 2 3/4″ W x 2 3/4″ D overall and mounts with (2) 3/16″ Dia. countersunk mounting holes.
Manufacturer tag reads: ST CLB CIRCUIT BREAKER BLOCK – 6 INDEPENDENT
Specifications:
- Part Manufacturer: Blue Sea Systems
- Part Number: 5050
- Material: Plastic
- Color: Black / Clear
- Maximum Amperage: 32A (per circuit)
- Maximum Voltage: 32V DC
- Terminal Stud Size: M8 (5/16″-18)
- Overall Dimensions: 6 3/4″ L x 2 3/4″ W x 2 3/4″ D
- Mounts: (2) 3/16″ Dia. Holes
