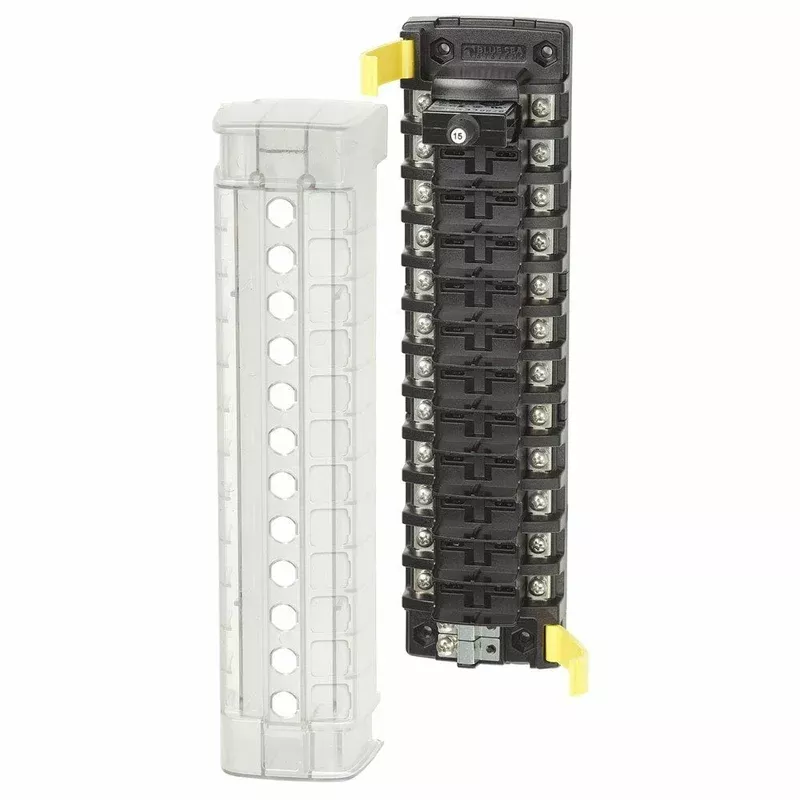

The Blue Sea ST CLB 12-Circuit Independent Circuit Breaker Block (5051-BSS) from Nomadic Supply Company® is a 12-circuit DC distribution block using ST CLB resettable circuit breakers, rated 30A per circuit and 100A total at 32V DC maximum.
Blue Sea ST CLB 12-Circuit Independent Circuit Breaker Block (5051-BSS) Features:
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Blue Sea Systems Circuits:
12
Blue Sea Systems Maximum Amperage:
32A (per circuit) 40A (per jumped circuit group)
Blue Sea Systems Maximum Voltage:
32V DC
Blue Sea Systems Mounting:
8 Screw (M4) or 8 Nut
Blue Sea Systems Source:
Independent Source
Blue Sea Systems Minimum Operating Temperature:
-10° C
Blue Sea Systems Maximum Operating Temperature:
60° C
Blue Sea Systems Mounting Centers:
10.13″(257.3 mm)
Blue Sea Systems Screw Terminal Type:
8-32 Screws with Captive Star Lock Washer
Blue Sea Systems Height:
6.69″(169.93 mm)
Blue Sea Systems Weight:
1.50lb (0.68 kg)
