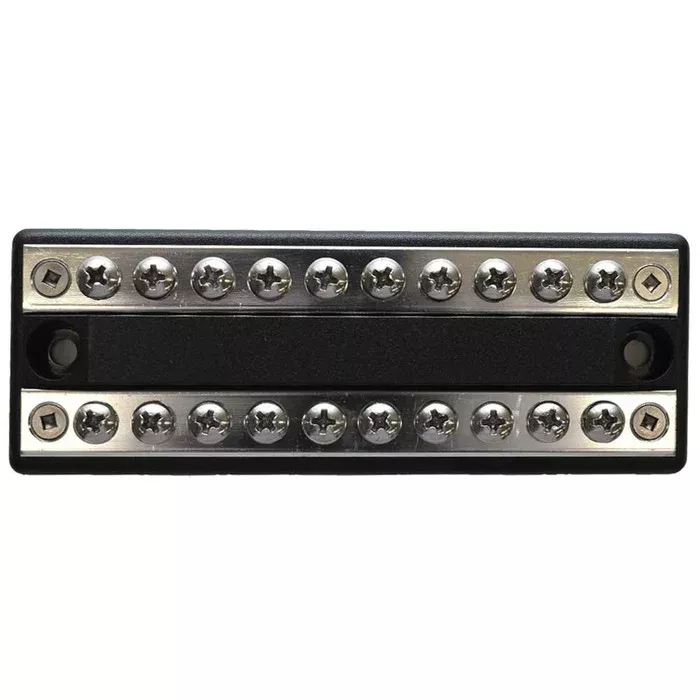

Boat part number 1103658 is a new dual bus bar from Blue Sea Systems, part number 2702 .
Per manufacturer, this bus bar combines negative and positive buses on one block and is constructed out of tin-plated copper. It measures approximately 5″ L x 1 3/4″ W x 1/2″ H overall. It has (10) screw terminals on each side and is rated for 300V AC / 48V DC and 100A, per manufacturer. It mounts via (2) counterbored 3/16″ holes.
Specifications:
- Part Manufacturer: Blue Sea Systems
- Part Number: 2702
- UPC: 632085027025
- Material: Tin-Plated Copper
- Color: Black
- Electrical: 300V AC / 48V DC / 100A
- Overall Dimensions: 5 L x 1 3/4 W x 1/2
- Mounts: (2) 3/16″ Mounting Holes
