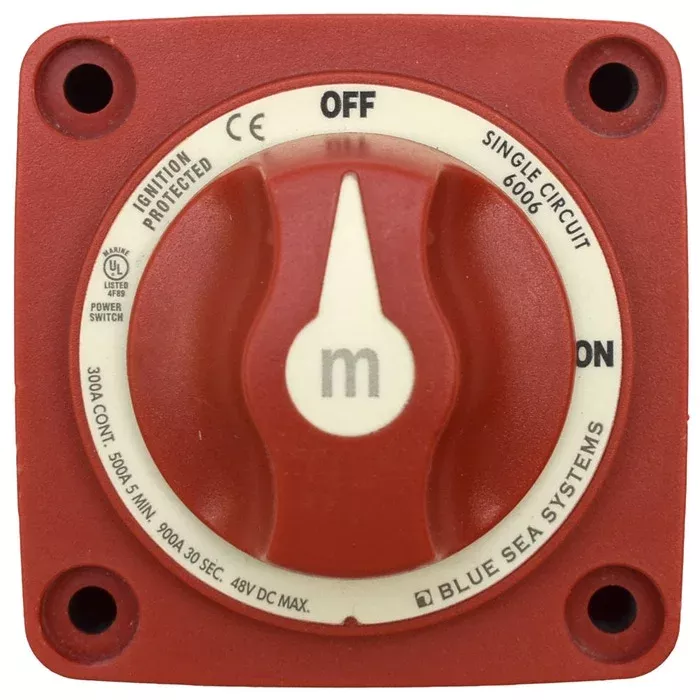

Boat part number 1120443 is a new m-series mini On-Off battery switch from Blue Sea Systems, part number 6006. Commonly used on Blue Wave boats, but may be used on other boats.
This battery switch is constructed out of red plastic. It measures approximately 3 3/8″ H x 2 7/8″ W x 2 7/8″ D overall and connects with (2) 3/8″ Dia. studs. There are (4) 3/16″ Dia. mounting holes at the corners set apart 2 1/8″ center-to-center.
Ratings:
- Continuous: 300A
- Intermittent: 500A (5 Min)
- Starting: 900A (30 Sec)
- Maximum Voltage: 48V DC
Specifications:
- Boat Manufacturer: Blue Wave Boats
- Part Number: Unavailable
- Part Manufacturer: Blue Sea Systems
- Part Number: 6006
- Material: Plastic
- Color:
- Finish: Red
- Overall Dimensions: 3 3/8″ H x 2 7/8″ W x 2 7/8″ D
- Mounts: (4) 3/16″ Dia. Holes set apart 2 1/8″ CTC
- Connections: (2) 3/8″ Dia. Studs
