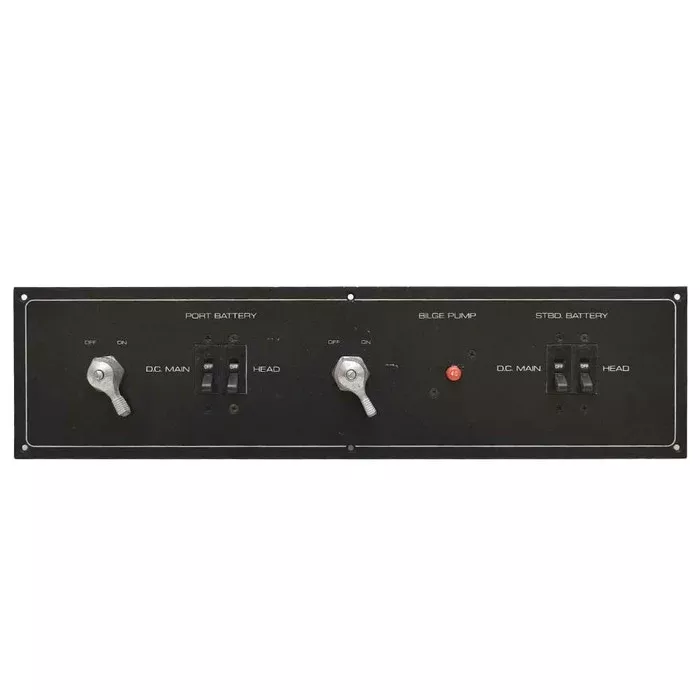

Boat part number 1031892 is a new battery breaker switch panel from Blue Water.
This breaker switch panel is constructed out of black aluminum. It measures approximately 19 7/8″ W x 5 1/8″ H overall. It mounts via (6) 3/16″ Dia. countersunk mounting holes. Features (2) battery switches, (1) D.C. Main and (1) Head toggle switches for Port and Starboard batteries. There is (1) 40 A, red push-to-reset bilge pump breaker.
Features:
- (1) Port Battery: Airpax (1) D.C. Main, (1) Head – 65 max v, Hertz DC, Delay 52, Trip Amps 62.5
- (1) STBD Battery: Airpax (1) D.C. Main, (1) Head – 65 max v, Hertz DC, Delay 52, Trip Amps 62.5
- (2) Cole Hersee On/Off Switches: Continuous – 175 6-12-24-36 Volt DC / Intermittent – 800 A 6-12-24-36 Volt DC 15 sec on / 5 min off
- (1) 40 amp push-to-reset button
Specifications:
- Part Manufacturer: Blue Water
- Material: Aluminum
- Color: Black
- Overall Dimensions: 19 7/8″ W x 5 1/8″ H
- Mounts: (6) 3/16″ Dia. Countersunk Mounting Holes
