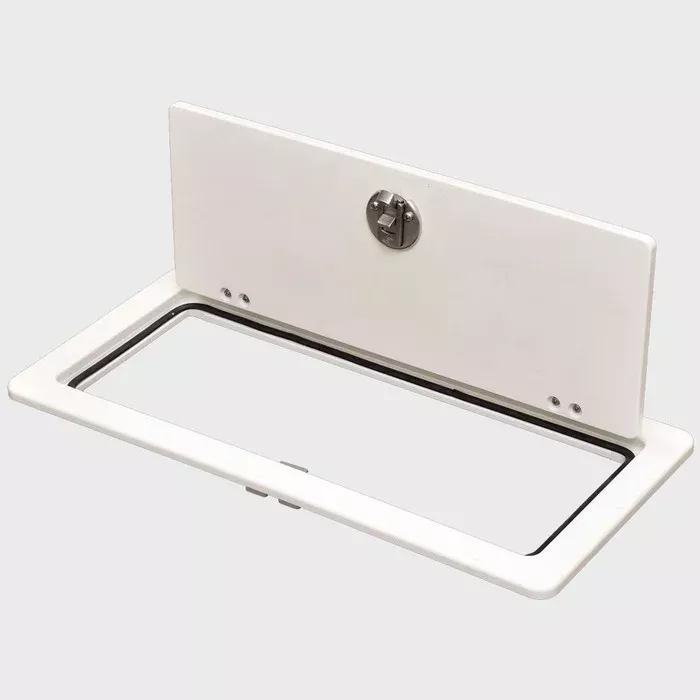

Boat part number 1120650 is a new electrical access door for 2600 Makaira model Blue Wave boats, part number PPF-000188 . Manufactured by Teak Isle, part number 20825-316581.
This door is constructed out of white starboard with stainless steel hardware and a bulb seal around the opening. It measures approximately 11″ H x 24″ W overall with a 7″ H x 20″ W opening. It mounts in a 9 1/4″ H x 22 1/4″ W cutout using (8) 3/16″ Dia. mounting holes around the flange.
Tag Reads: ELECT ACCESS DOOR, 11 X 24 – POLAR WHITE
Note: There is discoloration in the plastic due to storage / handling, see photos for details.
Specifications:
- Boat Manufacturer: Blue Wave Boats
- Model: 2600 Makaira
- Part Number: PPF-000188
- Part Manufacturer: Teak Isle
- Part Number: 20825-316581
- Material: Starboard
- Color: White
- Finish: Textured
- Overall Dimensions: 11″ H x 24″ W
- Opening: 7″ H x 20″ W
- Cutout: 9 1/4″ H x 22 1/4″ W
- Mounts: (8) 3/16″ Dia. Holes
